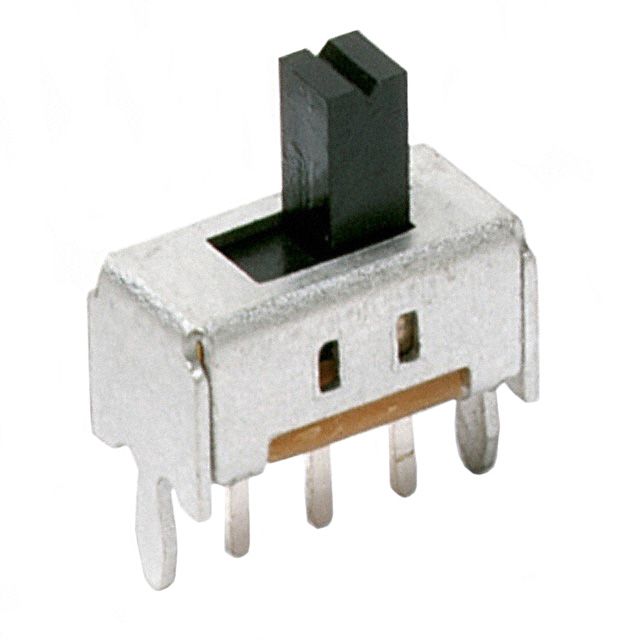

OS102011MS2QN1

Share

Or copy the link below:

Mfr.Part #
OS102011MS2QN1
Manufacturer
C&K
Package / Case
Datasheet
Download
Description
SWITCH SLIDE SPDT 100MA 12V
Stock
52
In Stock :
52

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
C&K
Product Category :
Moisture Sensitivity Level (MSL) :
1 (Unlimited)
Current Rating (Amps) :
100mA DC
Actuator Material :
Polyoxymethylene (Acetal) (POM)
Max Operating Temperature :
70°C
Packaging :
Bulk
Radiation Hardening :
No
Orientation :
Vertical
Housing Material :
Resin
Length :
8.6mm
Min Operating Temperature :
-30°C
Actuator Length :
4.00mm
Mechanical Life :
10,000 Cycles
Mount :
PCB, Through Hole
Contact Style :
Non-Shorting
Contact Material :
COPPER ALLOY
Depth :
4.3mm
Electrical Life :
10,000 Cycles
REACH SVHC :
No SVHC
Contact Finish :
Silver
Lead Free :
Lead Free
Termination Style :
PC Pin
Contact Resistance :
20mOhm
Factory Lead Time :
24 Weeks
Voltage - Rated DC :
12V
Contact Plating :
Gold, Silver
Actuator Type :
Standard
Number of Pins :
3
Operating Temperature :
-30°C~70°C
Contact Current Rating :
100mA
Current Rating :
100mA
Published :
2010
Circuit :
SPDT
Throw Configuration :
SPDT
Switch Travel :
2.00mm
Number of Positions :
2
Switch Function :
On-On
Mounting Type :
Through Hole
Max Voltage Rating (DC) :
12V
Max Current Rating :
100mA
Termination :
PC Pins
Series :
OS
Feature :
Epoxy Sealed Terminals
Contact Timing :
Non-Shorting (BBM)
Insulation Resistance :
100MOhm
RoHS Status :
ROHS3 Compliant
Introducing C&K OS102011MS2QN1 from Chip IC,where excellence meets affordability. This product stands out with its Number of Pins:3, Operating Temperature:-30°C~70°C, Circuit:SPDT, Mounting Type:Through Hole, OS102011MS2QN1 pinout, OS102011MS2QN1 datasheet PDF, OS102011MS2QN1 amp .Beyond C&K OS102011MS2QN1 ,we also offer F9TYP5E5EANF093, F9TYP5E5EANF094, F9TYP5E5EANF095, Our vast inventory has you covered. Contact us now for immediate solutions.

C&K OS102011MS2QN1


OS102011MS2QN1 datasheet pdf and Slide Switches product details from C&K stock available at

The C&K Components OS102011MS2QN1 Slide Switch is a SPDT (Single Pole Double Throw) On-On switch designed for through hole mounting. This switch is part of the OS Series and is rated for up to 100 mA. It features a low profile design and is ideal for applications where space is limited. The switch is designed for reliable operation and long life, making it a great choice for a variety of applications. It is also RoHS compliant and UL recognized. The OS102011MS2QN1 is a great choice for applications that require a reliable and durable switch.
