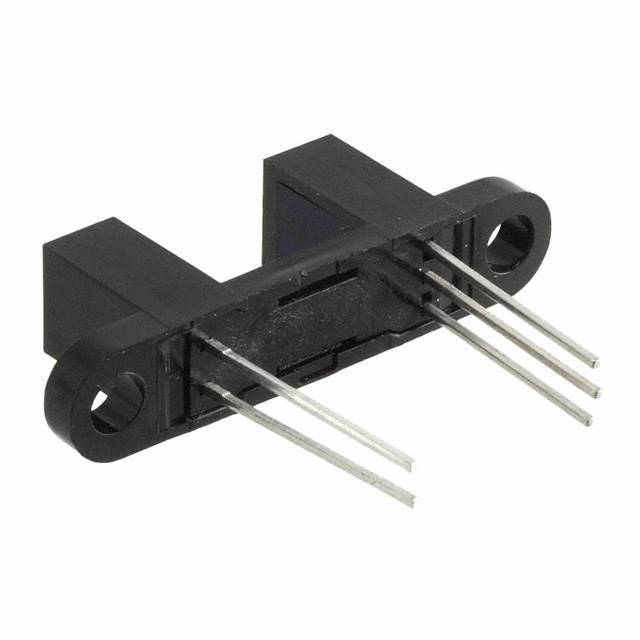

OPB900L55

Manufacturer :

TT Electronics

Product Category :

Optical Sensors - Photointerrupters - Slot Type - Logic Output

RoHS Status :

RoHS Compliant

Mount :

Screw, Through Hole

Output Voltage :

2.4V

Forward Current :

40mA

Reverse Voltage :

2V

Current - Supply :

15mA

Number of Pins :

5

Package / Case :

PCB Mount

Max Operating Temperature :

70°C

Max Output Voltage :

2.4V

Series :

Photologic®

Output Configuration :

Totem Pole, Buffer

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Number of Elements :

1

Packaging :

Bulk

Min Supply Voltage (DC) :

4.75V

Published :

1997

Output Current :

100μA

Voltage - Supply :

4.75V~5.25V

Radiation Hardening :

No

Fall Time (Typ) :

70 ns

Lead Free :

Lead Free

Min Operating Temperature :

-40°C

Touchscreen :

Infrared (IR)

Factory Lead Time :

8 Weeks

Number of Channels :

1

Power Dissipation :

300mW

Reverse Breakdown Voltage :

2V

Input Current :

20mA

Operating Temperature :

-40°C~85°C TA

Rise Time :

70ns

Operating Supply Current :

15mA

Response Time :

70ns

Sensing Distance :

0.375 (9.53mm)

Max Supply Voltage (DC) :

5.25V

Sensing Method :

Through-Beam

Mounting Type :

Through Hole
