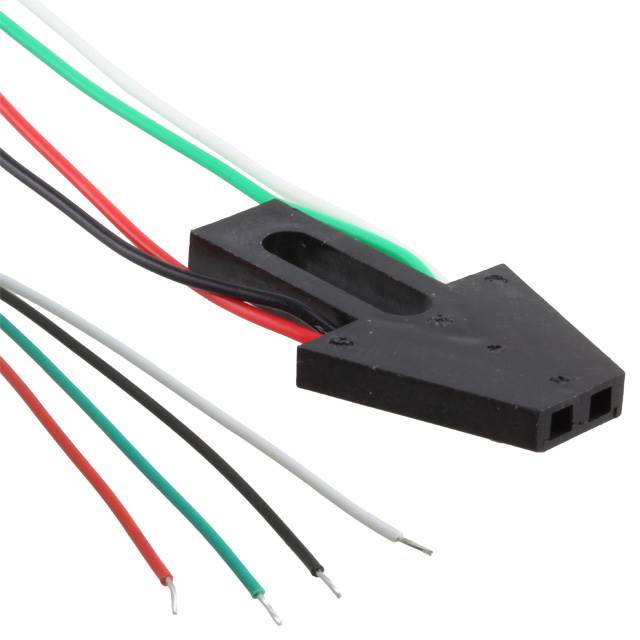

OPB701Z

Manufacturer :

TT Electronics

Product Category :

Optical Sensors - Reflective - Analog Output

Reverse Voltage :

2V

Max Operating Temperature :

100°C

Reverse Breakdown Voltage :

2V

Voltage - Rated DC :

15V

Operating Temperature :

-40°C~100°C

Max Collector Current :

43mA

RoHS Status :

RoHS Compliant

Number of Pins :

4

Mount :

Chassis Mount

Mounting Type :

Chassis Mount

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Output Voltage :

15V

Number of Elements :

1

Package / Case :

Module, Pre-Wired

Collector Emitter Voltage (VCEO) :

15V

Max Input Current :

50mA

Reverse Voltage (DC) :

2V

Packaging :

Bulk

Current - DC Forward (If) (Max) :

100mA

Min Operating Temperature :

-40°C

Collector Emitter Breakdown Voltage :

15V

Forward Current :

100mA

Sensing Method :

Reflective

Voltage - Collector Emitter Breakdown (Max) :

15V

Wavelength :

890 nm

Published :

1997

Number of Channels :

1

Forward Voltage :

1.7V

Input Current :

50mA

Max Breakdown Voltage :

15V

Factory Lead Time :

10 Weeks

Output Type :

Photodarlington

Sensing Distance :

0.200 (5.08mm)

Power Dissipation :

80mW

REACH SVHC :

No SVHC
