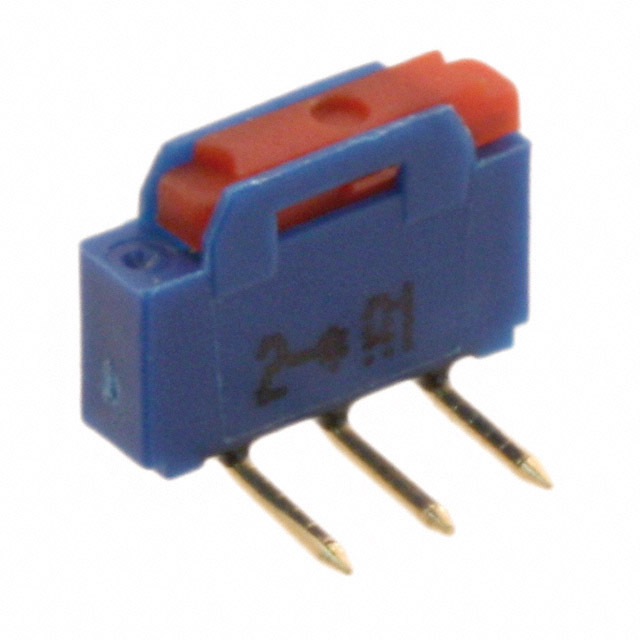

NK236W
Or copy the link below:
- Mfr.Part #
- NK236W
- Manufacturer
- APEM Inc.
- Package / Case
- Datasheet
- Download
- Description
- SWITCH SLIDE SPDT 500MA 12V
- Stock
- 51
- In Stock ：
- 51
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- APEM Inc.
- Product Category :
- Contact Resistance :
- 20mOhm
- Number of Positions :
- 1
- Voltage - Rated AC :
- 12V
- Body Length or Diameter :
- 10mm
- Contact Finish :
- Gold
- JESD-609 Code :
- e4
- Operating Temperature :
- -40°C~85°C
- Contact Timing :
- NOT SPECIFIED
- Actuator Type :
- Flush
- Insulation Resistance :
- 10000000000Ohm
- Actuator Material :
- Polyamide (PA66), Nylon 6/6, Glass Filled
- Feature :
- Sealed - Flux Protection
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Mount :
- PCB, Through Hole
- HTS Code :
- 8536.50.90.50
- Voltage - Rated DC :
- 12V
- Current Rating (Amps) :
- 500mA DC
- Electrical Life :
- 2,000 Cycles
- Current Rating :
- 500mA
- Termination Style :
- PC Pin
- Switch Function :
- On-On
- Factory Lead Time :
- 5 Weeks
- RoHS Status :
- ROHS3 Compliant
- Mounting Type :
- Through Hole, Right Angle
- Switch Type :
- SLIDE SWITCH
- Body Height :
- 2.6mm
- Contact Current(DC)-Max :
- 0.5A
- Circuit :
- SPDT
- Switch Travel :
- 1.60mm
- Termination :
- PC Pin
- Contact (AC) Max Rating R Load :
- .5A@12VAC
- Packaging :
- Bulk
- Contact Current Rating :
- 500mA
- Flammability Rating :
- UL94 V-0
- Body Breadth :
- 6.5 mm
- ECCN Code :
- EAR99
- Contact Material :
- Nickel
- Series :
- NK
- Contact (DC) Max Rating R Load :
- .5A@12VDC
- PCB Hole Count :
- 3
- Contact Current(AC)-Max :
- 0.5A
- Length - Termination :
- 0.146 inch
- Datasheets
- NK236W
