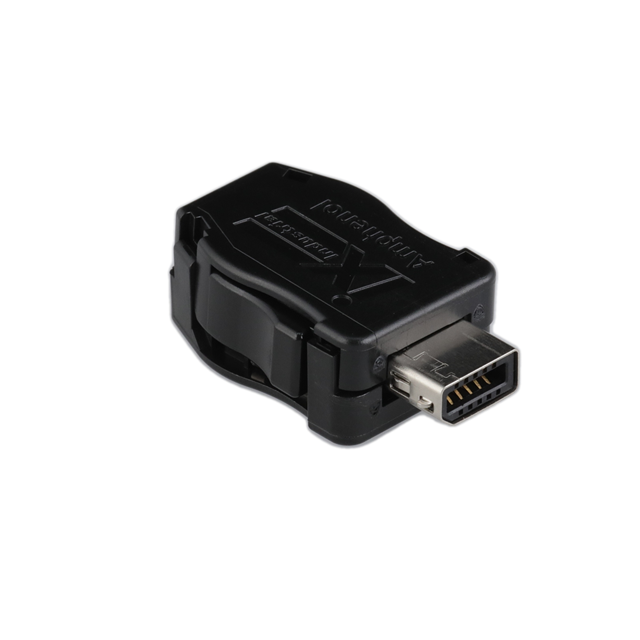

ND9AP5200

Share

Or copy the link below:

Mfr.Part #
ND9AP5200
Manufacturer
Amphenol Communications Solutions
Package / Case
Datasheet
Download
Description
IX INDUSTRIAL IP20, PLUG, TYPE A
Stock
68
In Stock :
68

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
Amphenol Communications Solutions
Product Category :
Pluggable Connector Assemblies
Product Category :
Modular Connectors / Ethernet Connectors
RoHS :
Details
Product Type :
Modular Connectors / Ethernet Connectors
Mounting Angle :
Straight
Shielding :
Shielded
Connector Style :
PLUG
Termination Method :
Solder
Maximum Operating Temperature :
+ 85 C
Mounting Type :
Free Hanging (In-Line)
Tradename :
ix Industrial
Brand :
Amphenol Commercial Products
Termination :
Solder
Number of Positions :
10
Port Configuration :
1 x 1 (Port)
USOC Codes :
RJ50
Product Length :
16.3 mm
Flammability Rating :
UL64V-0
Color :
Black
Insulation Resistance :
500 mOhm
Subcategory :
Modular Connectors / Ethernet Connectors
Base Product Number :
ND9A
Voltage Rating :
60 VDC
Contact Finish Thickness :
8.00µin (0.203µm)
Termination Style :
IDC
Gender :
PLUG
Connector Orientation :
Straight
Number of Contacts :
10
Body Orientation :
Straight
IP Rating :
IP20
Operating Temperature :
-55 to 85 °C
Product :
Connectors
Package :
Box
Base/Housing Material :
Stainless Steel
Connector Type :
Multi-Purpose
Number of Ports :
1 Port
Contact Material :
Phosphor Bronze
Application :
10G Base-T
Configuration :
1x1
Mounting :
Cable Mount
Coding :
A Coded
Series :
ix Industrial?
Pitch :
10 mm
Manufacturer :
Amphenol
Current Rating :
1.5 A
LEDs :
Without LED
Mounting Style :
In-Line
Type :
iX Industrial Ethernet
Features :
Latch Lock, Shielded
Contact Plating :
Gold
Minimum Operating Temperature :
- 55 C
Compliance :
IEC61076-3-124
Packaging :
Bulk
Product Status :
Active
Contact Finish :
Gold
Introducing Pluggable Connector Assemblies Amphenol Communications Solutions ND9AP5200 from Chip IC,where excellence meets affordability. This product stands out with its Mounting Type:Free Hanging (In-Line), Operating Temperature:-55 to 85 °C, Type:iX Industrial Ethernet, ND9AP5200 pinout, ND9AP5200 datasheet PDF, ND9AP5200 amp .Beyond Pluggable Connector Assemblies Amphenol Communications Solutions ND9AP5200 ,we also offer 10120818-001C-TRLF, 0678005025, 2170088-2, Our vast inventory has you covered. Contact us now for immediate solutions.
