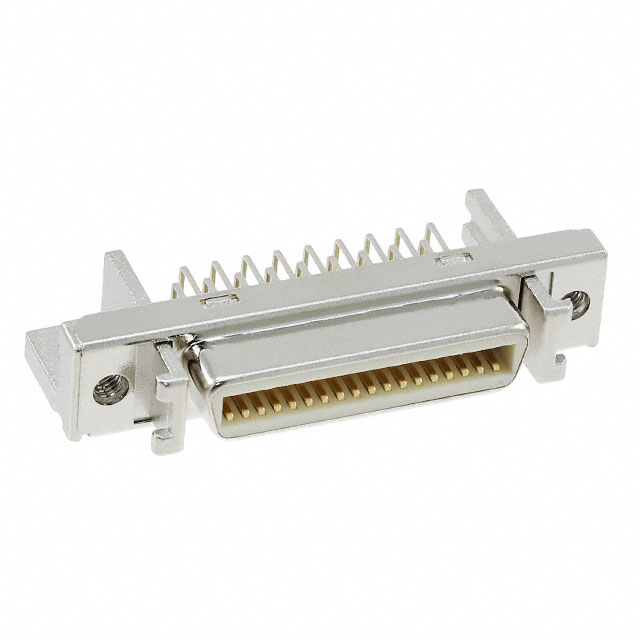

N10236-52B2PC

Manufacturer :

3M

Product Category :

Centronics Connectors

REACH SVHC :

No SVHC

Length :

43.5mm

Number of Positions :

36

Mount :

Panel, Through Hole

Orientation :

RIGHT ANGLE

Published :

2000

Plating :

Gold

Depth :

16.7mm

Gender :

Receptacle

RoHS Status :

RoHS Compliant

Housing Material :

Polychlorinated

Termination :

Solder

Housing Color :

Beige

Flange Feature :

Housing/Shell (M2.6)

Lead Free :

Lead Free

Number of Contacts :

36

Contact Material :

Copper

Contact Finish :

Gold

Connector Type :

Receptacle

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Current Rating :

1A

Number of Rows :

2

Series :

102, Mini D Ribbon (MDR)

Max Operating Temperature :

105°C

Contact Finish Thickness :

30.0μin 0.76μm

Pitch :

2.54mm

Contact Plating :

Gold

Connector Style :

Outer Shroud Contacts

Number of Terminations :

36

Mounting Type :

Panel Mount, Through Hole, Right Angle

Min Operating Temperature :

-55°C

Width :

13.9mm

Flammability Rating :

UL94 V-0

Factory Lead Time :

13 Weeks

Number of Ports :

1

Feature :

Board Lock, Shielded

Max Current Rating :

1A
