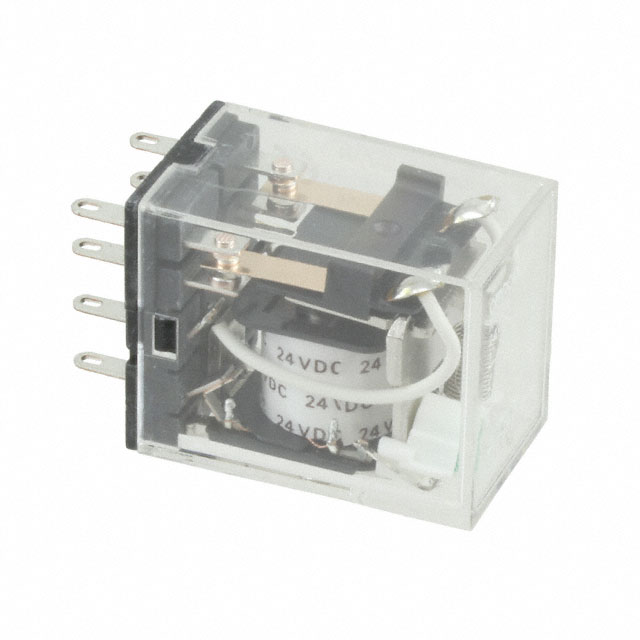

MY2N-DC24
Or copy the link below:
- Mfr.Part #
- MY2N-DC24
- Manufacturer
- Omron Automation
- Package / Case
- Datasheet
- Download
- Description
- RELAY GEN PURPOSE DPDT 5A 24V
- Stock
- 40,540
- In Stock ：
- 40,540
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Omron Automation
- Product Category :
- Power Relays, Over 2 Amps
- Reference Standard :
- CE; CSA; IMQ; LR; SEV; UL; VDE
- Additional Feature :
- WITH LED INDICATOR
- Contact Material :
- Silver (Ag)
- Release Time :
- 20 ms
- Body Height :
- 36mm
- Contact Voltage(AC)-Max :
- 250V
- Coil Current :
- 37.7mA
- Must Release Voltage :
- 2.4VDC
- Contact Voltage(DC)-Max :
- 30V
- Coil/Input Supply Type :
- DC
- Relay Action :
- Momentary
- Contact/Output Supply Type :
- AC/DC
- Mounting Type :
- Socketable
- Mounting Feature :
- SOCKET MOUNT
- Coil Type :
- Non Latching
- HTS Code :
- 8536.41.00.20
- Physical Dimension :
- 28mm x 21.5mm x 36mm
- Contact (AC) Max Rating R Load :
- 10A@250VAC
- Published :
- 2015
- Body Breadth :
- 21.5 mm
- Reach Compliance Code :
- Unknown
- Coil Power :
- 900mW
- Must Operate Voltage :
- 19.2VDC
- RoHS Status :
- RoHS Compliant
- Surface Mount :
- No
- Contact (DC) Max Rating R Load :
- 10A@30VDC
- Operate Time :
- 20ms
- Termination Style :
- Plug In
- Coil Resistance :
- 636Ohm
- Contact Form :
- DPDT (2 Form C)
- Coil Voltage :
- 24VDC
- Body Length or Diameter :
- 28mm
- Packaging :
- Bulk
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Pbfree Code :
- yes
- Series :
- MY
- Electrical Life :
- 500000 Cycle(s)
- Operating Temperature :
- -55°C~70°C
- Switching Voltage :
- 250VAC 125VDC -Max
- Feature :
- Lighted Indicator
- Contact Rating (Current) :
- 5A
- Relay Type :
- GENERAL PURPOSE
- ECCN Code :
- EAR99
- Datasheets
- MY2N-DC24
