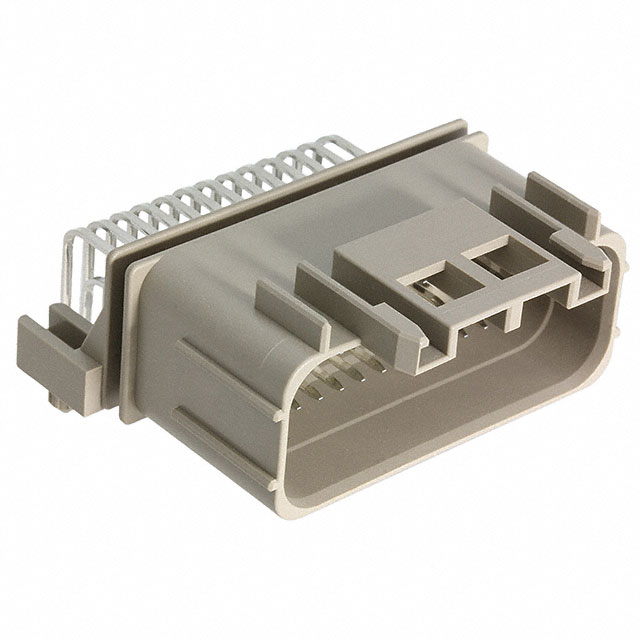

MX47039NF2
Or copy the link below:
- Mfr.Part #
- MX47039NF2
- Manufacturer
- JAE Electronics
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER R/A 39POS 2.5MM
- Stock
- 46,278
- In Stock ：
- 46,278
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- JAE Electronics
- Product Category :
- Headers, Male Pins
- Insulation Material :
- Polybutylene Terephthalate (PBT), Glass Filled
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Feature :
- Board Guide
- Termination :
- Solder
- Operating Temperature :
- -40°C~125°C
- Shrouding :
- Shrouded - 4 Wall
- Contact Finish - Post :
- Tin
- Number of Positions :
- 39
- Color :
- Grey
- Mounting Type :
- Through Hole, Right Angle
- Mount :
- Through Hole
- Applications :
- Automotive
- Factory Lead Time :
- 14 Weeks
- Insulation Height :
- 0.760 19.30mm
- Current Rating (Amps) :
- 3A
- Packaging :
- Bulk
- Connector Type :
- Header
- Fastening Type :
- Latch Holder
- Contact Type :
- Male Pin
- Contact Finish - Mating :
- Tin
- Number of Positions Loaded :
- All
- Contact Plating :
- Tin
- Style :
- Board to Cable/Wire
- Gender :
- Male
- Series :
- MX47
- Ingress Protection :
- Waterproof
- Pitch :
- 2.4892mm
- Contact Shape :
- Square
- Row Spacing - Mating :
- 0.142 (3.60mm)
- Orientation :
- RIGHT ANGLE
- Pitch - Mating :
- 0.098 2.50mm
- Contact Material :
- Brass
- Insulation Color :
- Gray
- Contact Length - Post :
- 0.138 3.50mm
- Number of Rows :
- 3
- RoHS Status :
- RoHS Compliant
- Datasheets
- MX47039NF2
MX47 Series 3-Row Header Solder Brass Bulk Through Hole, Right Angle Tin Polybutylene Terephthalate (PBT), Glass Filled 39-Position Board to Cable/Wire 0.760 19.30mm Height
MX47039NF2 Overview
The packaging contains Header.There is a Through Hole, Right Angle mounting type for the device.This product is packaged in a case marked Bulk.Product number MX47 belongs to the MX47 Series.In addition to Automotive, there are other possible applications for the device.In many ways, it is more powerful due to its Board Guide feature.There is a Through Hole mount on the part.This device operates at a temperature of -40°C~125°C.
MX47039NF2 Features
MX47 series
MX47039NF2 Applications
There are a lot of JAE Electronics
MX47039NF2 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
