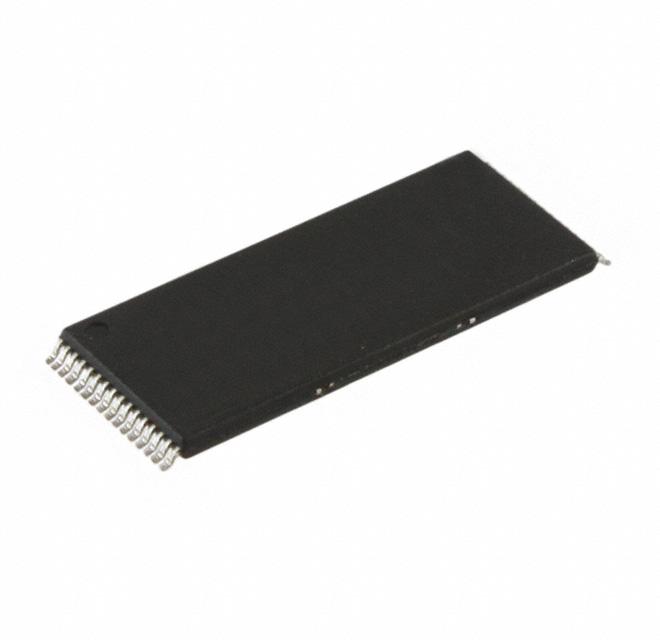

MX29LV040CTC-70G

Manufacturer :

Macronix

Product Category :

Memory

Qualification Status :

Not Qualified

Terminal Pitch :

0.5mm

Width :

8mm

Memory Type :

Non-Volatile

Operating Supply Voltage :

3.6V

Factory Lead Time :

16 Weeks

Write Cycle Time - Word, Page :

70ns

Memory Interface :

Parallel

Number of Functions :

1

Memory Format :

Flash

Mounting Type :

Surface Mount

Programming Voltage :

3V

Series :

MX29LV

Organization :

512KX8

Terminal Position :

Dual

Voltage - Supply :

2.7V~3.6V

Supply Current-Max :

0.03mA

Memory Size :

4Mb 512K x 8

ECCN Code :

EAR99

Standby Current-Max :

0.000005A

Common Flash Interface :

yes

Length :

18.4mm

Packaging :

Tray

Moisture Sensitivity Level (MSL) :

3 (168 Hours)

Pin Count :

32

Command User Interface :

yes

Access Time (Max) :

70 ns

Density :

4 Mb

Number of Pins :

32

Supply Voltage-Min (Vsup) :

2.7V

Number of Terminations :

32

Height Seated (Max) :

1.2mm

Package / Case :

32-TFSOP (0.724, 18.40mm Width)

RoHS Status :

ROHS3 Compliant

Time@Peak Reflow Temperature-Max (s) :

40

Toggle Bit :

yes

Number of Sectors/Size :

8

Data Polling :

yes

JESD-609 Code :

e6

Operating Temperature :

0°C~70°C TA

Terminal Finish :

Tin/Bismuth (Sn/Bi)

Surface Mount :

yes

Sector Size :

64K

Lead Free :

Lead Free

Pbfree Code :

yes

Operating Mode :

ASYNCHRONOUS

Power Supplies :

3/3.3V

Memory Width :

8

Peak Reflow Temperature (Cel) :

260

Supply Voltage :

3V
