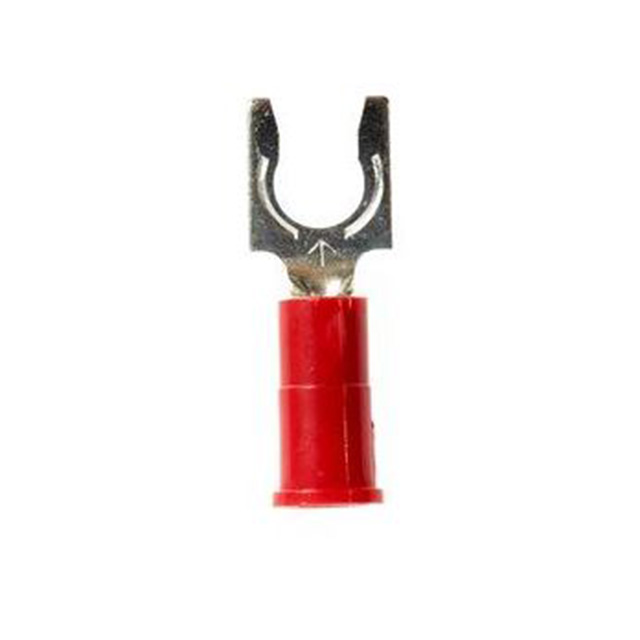

MV18-10FLX
Or copy the link below:
- Mfr.Part #
- MV18-10FLX
- Manufacturer
- 3M
- Package / Case
- Datasheet
- Download
- Description
- CONN SPADE TERM 18-22AWG #10 RED
- Stock
- 2,746
- In Stock ：
- 2,746
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- 3M
- Product Category :
- Spade Connectors
- Approval Agency :
- CSA, UL
- Length - Overall :
- 0.880 22.35mm
- Packaging :
- Bulk
- Published :
- 2005
- Termination :
- Crimp
- Factory Lead Time :
- 3 Weeks
- Feature :
- Brazed Seam
- Material - Insulation :
- Vinyl
- Terminal and Terminal Block Type :
- FORK TERMINAL
- Stud/Tab Size :
- 10 Stud
- Weight :
- 272.15545g
- Width :
- 8.13mm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Terminal Type :
- Spring, Snap
- Insulation Diameter :
- 0.145 (3.68mm)
- Contact Material :
- Copper, ETP
- RoHS Status :
- RoHS Compliant
- Width - Outer Edges :
- 0.320 8.13mm
- REACH SVHC :
- Unknown
- Wire Gauge :
- 18-22 AWG
- Thickness :
- 760μm
- Contact Finish :
- Tin
- Length - Termination :
- 0.450 11.43mm
- Wire/Cable Gauge :
- 22 AWG
- Color :
- Red
- Terminal Material :
- Copper
- Series :
- Scotchlok™
- Orientation :
- Straight
- Mounting Type :
- Free Hanging (In-Line)
- Mount :
- Free Hanging
- Insulation :
- Insulated
- Wire Gauge (Min) :
- 18 AWG
- Length :
- 22.352mm
- Wire Gauge (Max) :
- 22 AWG
- Length - Ring Center to Termination :
- 0.250 6.35mm
- Depth :
- 8.12mm
- Datasheets
- MV18-10FLX
