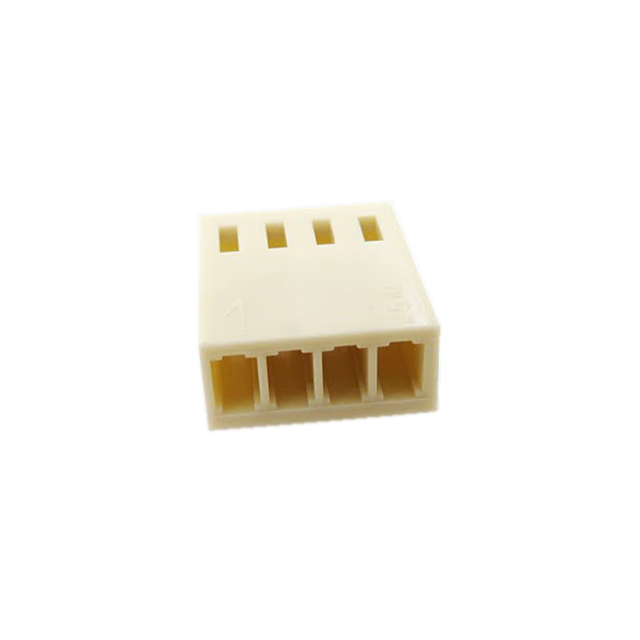

MTA-04

Manufacturer :

Adam Tech

Product Category :

Rectangular Connector Housings

Packaging :

Bulk

Mounting Option 1 :

LOCKING

Contact Type :

Female Socket

Number of Positions :

4

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Dielectric Withstanding Voltage :

500VAC V

Total Number of Contacts :

4

Reliability :

COMMERCIAL

Connector Type :

Receptacle

Insulation Material :

Nylon

Mounting Type :

Free Hanging (In-Line)

Body Depth :

0.5 inch

Pitch :

0.100 2.54mm

Series :

MTA

Wire Size (Min) :

28 AWG

Number of Rows :

1

Rated Current (Signal) :

3A

Contact Finish - Mating :

SN ON CU

Wire Size (Max) :

22 AWG

Color :

White

Polarization Key :

POLARIZED HOUSING

Contact Termination :

Crimp

Reference Standard :

UL, CSA

Operating Temperature (Max) :

85°C

Factory Lead Time :

9 Weeks

RoHS Status :

ROHS3 Compliant

Flammability Rating :

UL94 V-0

Note :

Contacts Not Included

Operating Temperature (Min) :

-25°C

JESD-609 Code :

e3
