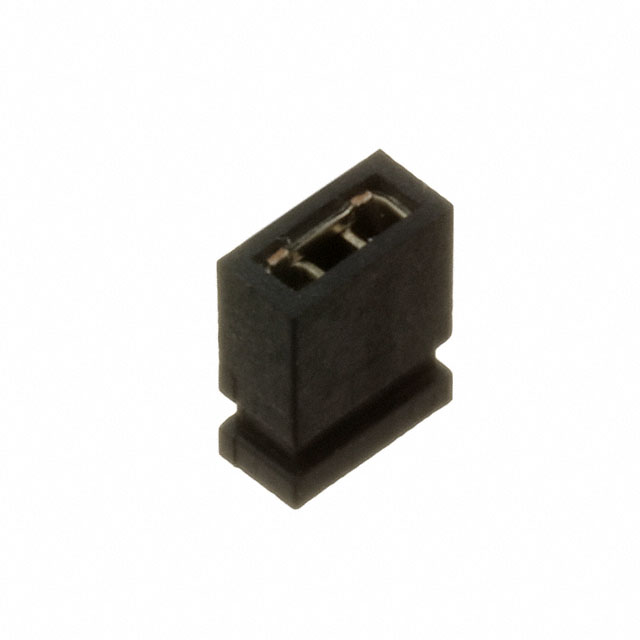

MS2C-G

Manufacturer :

Adam Tech

Product Category :

Shunts, Jumpers

Contact Pattern :

RECTANGULAR

Contact Material :

Phosphor Bronze

Contact Finish :

Gold

Color :

Black

Housing Material :

Polybutylene Terephthalate (PBT), Glass Filled

Additional Feature :

RoHS Compliant

RoHS Status :

ROHS3 Compliant

Factory Lead Time :

9 Weeks

Packaging :

Bulk

Contact Finish Thickness :

Flash

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Number of Conductors :

ONE

Insulation Resistance :

5000000000Ohm

Operating Temperature (Min) :

-40°C

Gender :

Female Sockets

Contact Resistance :

20mOhm

Reliability :

COMMERCIAL

Body/Shell Style :

PLUG

Pitch :

0.079 2.00mm

Reference Standard :

UL, CSA

Material Flammability Rating :

UL94 V-0

Type :

Closed Top

Number of Rows :

1

Number of Positions or Pins (Grid) :

2 (1 x 2)

Operating Temperature (Max) :

105°C

Mounting Style :

Straight

Height :

0.197 5.00mm

Dielectric Withstanding Voltage :

1000VAC V

Total Number of Contacts :

2

Series :

MS

Voltage - Rated :

250VAC

Current Rating (Amps) :

1A
