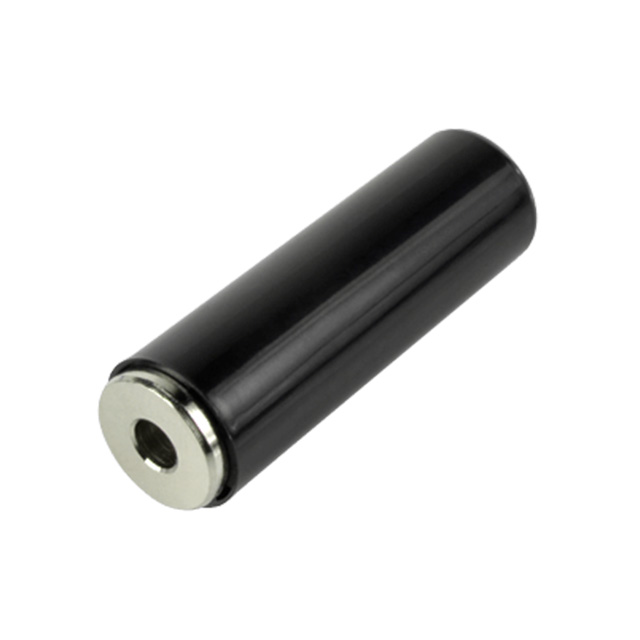

MR-3530A
Or copy the link below:
- Mfr.Part #
- MR-3530A
- Manufacturer
- CUI Devices
- Package / Case
- Datasheet
- Download
- Description
- AUDIO JACK, 3.5 MM, STRAIGHT, 3
- Stock
- 1,272
- In Stock ：
- 1,272
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- CUI Devices
- Product Category :
- Audio Connectors
- Feature :
- Cover
- Connector Type :
- Phone Jack
- Voltage - Rated :
- 12VDC
- Housing Material :
- Acrylonitrile Butadiene Styrene (ABS)
- Shielding :
- Unshielded
- Number of Positions/Contacts :
- 2 Conductors, 3 Contacts
- Actual Diameter :
- 0.142 (3.60mm)
- Internal Switch(s) :
- Does Not Contain Switch
- Operating Temperature :
- -25°C~70°C
- Cable Opening :
- 0.228 (5.80mm)
- Mounting Type :
- Free Hanging (In-Line)
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Signal Lines :
- Mono
- Factory Lead Time :
- 12 Weeks
- Gender :
- FEMALE
- Insulation Color :
- White
- Contact Material - Plating :
- Gold
- Current Rating (Amps) :
- 1A
- Industry Recognized Mating Diameter :
- 3.50mm (0.141, 1/8, Mini Plug) - Headphone
- Mating Length/Depth :
- 0.551 14.00mm
- Body Color :
- Silver, Black
- Body Material :
- Brass
- RoHS Status :
- RoHS Compliant
- Contact Material :
- Phosphor Bronze
- Packaging :
- Bulk
- Includes :
- 2 pcs - 1 Connector, 1 Cover
- Termination :
- Solder
- Datasheets
- MR-3530A
