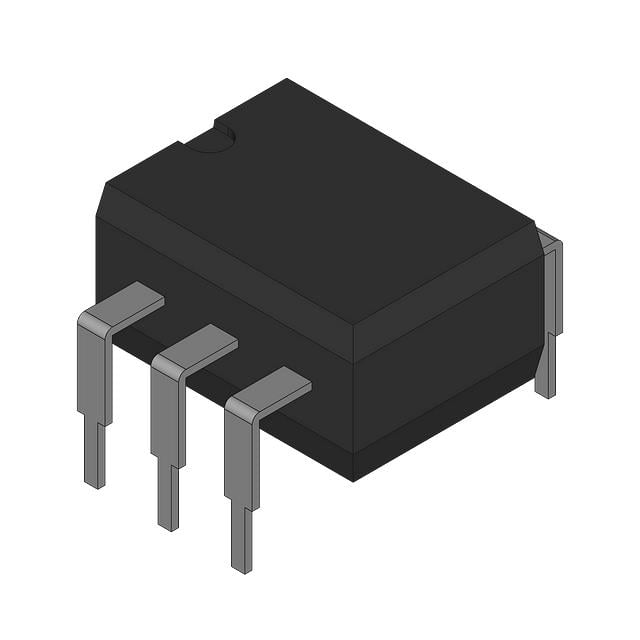

MOC3061SR2M
Or copy the link below:
- Mfr.Part #
- MOC3061SR2M
- Manufacturer
- Fairchild Semiconductor
- Package / Case
- 6-SMD, Gull Wing
- Datasheet
- Download
- Description
- TRIAC OUTPUT OPTOCOUPLER WITH ZE
- Stock
- 31,258
- In Stock ：
- 31,258
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Fairchild Semiconductor
- Product Category :
- Optoisolators - Triac, SCR Output
- Published :
- 2008
- Max Power Dissipation :
- 250mW
- Terminal Finish :
- Tin (Sn)
- Peak Surge Current :
- 1A
- Approval Agency :
- UL
- Number of Channels :
- 1
- Configuration :
- Single
- Pbfree Code :
- yes
- Forward Current :
- 60mA
- Operating Temperature :
- -40°C~85°C
- Output Type :
- Triac
- Radiation Hardening :
- No
- Current - Hold (Ih) :
- 500μA Typ
- Mounting Type :
- Surface Mount
- Mount :
- Surface Mount
- Power Dissipation :
- 250mW
- Packaging :
- Tape and Reel (TR)
- Input Trigger Current-Nom :
- 15mA
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- ECCN Code :
- EAR99
- Number of Pins :
- 6
- Package / Case :
- 6-SMD, Gull Wing
- Reverse Breakdown Voltage :
- 6V
- On-State Voltage-Max :
- 3V
- RoHS Status :
- ROHS3 Compliant
- Voltage - Isolation :
- 4170Vrms
- Static dV/dt (Min) :
- 600V/µs
- Max Input Voltage :
- 1.5V
- Hold Current :
- 500μA
- Current - LED Trigger (Ift) (Max) :
- 15mA
- Lifecycle Status :
- ACTIVE (Last Updated: 4 days ago)
- Weight :
- 810mg
- Number of Elements :
- 1
- Factory Lead Time :
- 6 Weeks
- Voltage - Off State :
- 600V
- Nominal Input Voltage :
- 1.3V
- Lead Free :
- Lead Free
- Zero Crossing Circuit :
- yes
- JESD-609 Code :
- e3
- Datasheets
- MOC3061SR2M
