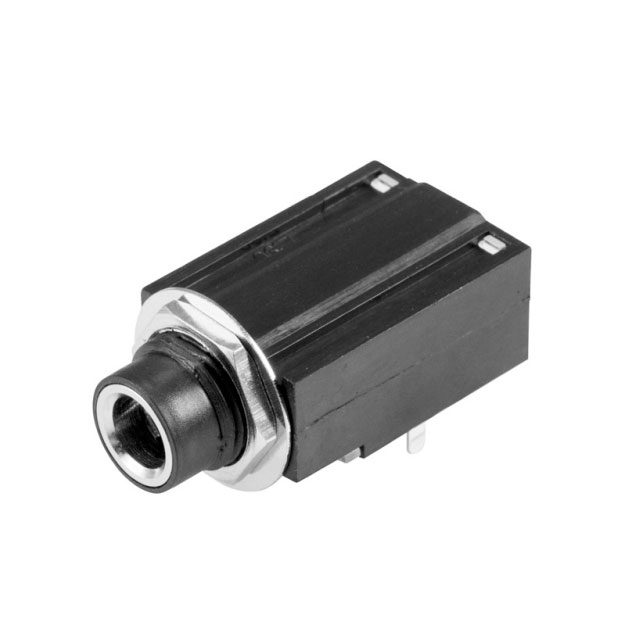

MJ-63012G

Manufacturer :

CUI Devices

Product Category :

Audio Connectors

Voltage - Rated :

12VDC

Housing Material :

Polybutylene Terephthalate (PBT)

Includes :

-

Product Type :

Phone Connectors

Color :

Black

Product Diameter (mm) :

Not Required(mm)

Shielding :

Unshielded

Thread Size :

M12

Termination Method :

Solder

Operating Temp Range :

-25C to 70C

Contact Material :

Phosphor Bronze

Product Height (mm) :

12(mm)

Product Category :

Phone Connectors

Contact Plating :

Silver

Voltage Rating :

12 VDC

Insulation Color :

Black

Number of Positions :

1 Position

Body Color :

Black

Body Orientation :

RIGHT ANGLE

Operating Temperature :

-25°C ~ 70°C

Industry Recognized Mating Diameter :

6.35mm (0.250, 1/4) - Headphone

Product Depth (mm) :

35.5(mm)

Termination :

Solder

Connector Type :

Phone Jack

Subcategory :

Audio and Video Connectors

Package :

Bag

Mounting Type :

Through Hole, Right Angle

Switch Configuration :

Switched

Series :

-

Product Length (mm) :

18(mm)

Mounting Style :

Through Hole

Packaging :

Bulk

Number of Ports :

1(Port)

Features :

Cover, Mounting Hardware, Thread Lock

Mating Length/Depth :

1.220 (31.00mm)

Brand :

CUI Devices

Type :

AUDIO JACK

Number of Contacts :

3(POS)

Current Rating (Amps) :

1 A

Gender :

F

Orientation :

RIGHT ANGLE

Body Material :

-

Internal Switch(s) :

Single Switch

Accessory Type :

-

Actual Diameter :

0.252 (6.40mm)

Operating Temperature Min Deg. C :

-25C

Panel Hole Size :

-

Operating Temperature Max Deg. C :

70C

Contact Material - Plating :

Silver

Signal Lines :

Stereo (3 Conductor, TRS)

Standard :

6.3 mm

Number of Positions/Contacts :

3 Conductors, 4 Contacts

Product Status :

Active

Cable Opening :

-

Manufacturer :

CUI Devices

Mating Cycles :

5000 Cycles

Number of Terminals :

4

Termination Style :

Solder

Current Rating (Max) :

1(A)
