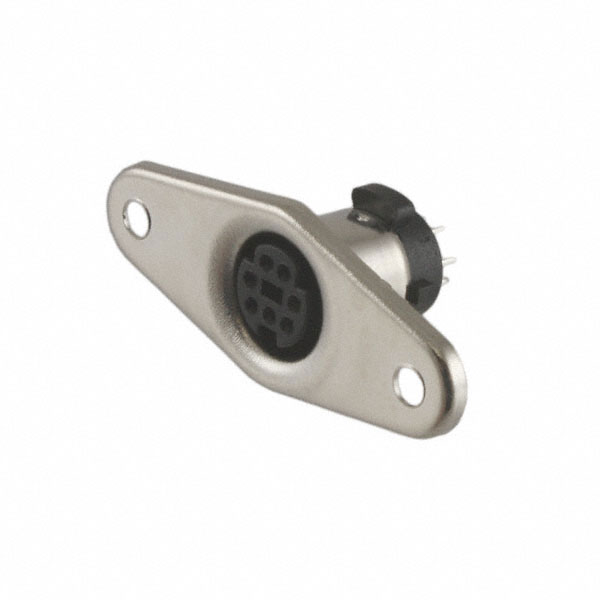

MD-70SN
Or copy the link below:
- Mfr.Part #
- MD-70SN
- Manufacturer
- CUI Devices
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT FMALE MINI DIN 7P SLDR
- Stock
- 11,397
- In Stock ：
- 11,397
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- CUI Devices
- Product Category :
- Circular Connector Assemblies
- Current Rating (Amps) :
- 1A 2A
- Max Operating Temperature :
- 105°C
- Contact Finish - Mating :
- Silver
- Shell Finish :
- Nickel
- Published :
- 2011
- Mount :
- Flanges, Panel
- Contact Plating :
- Silver
- Number of Positions :
- 7
- Series :
- MD-SN
- Fastening Type :
- Push-Pull
- Current Rating :
- 2A
- Min Operating Temperature :
- -20°C
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Termination :
- Solder
- Insert Material :
- Polyamide (PA), Nylon, Glass Filled
- Orientation :
- Keyed
- RoHS Status :
- RoHS Compliant
- Packaging :
- Bulk
- Shielding :
- Shielded
- Number of Contacts :
- 7
- Factory Lead Time :
- 11 Weeks
- Insulation Material :
- Nylon
- Connector Type :
- Receptacle, Female Sockets
- Lead Free :
- Lead Free
- Operating Temperature :
- -20°C~105°C
- Color :
- Silver
- Voltage - Rated :
- 100VAC 12VDC
- Mounting Type :
- Panel Mount
- Contact Material :
- Phosphor Bronze
- Material Flammability Rating :
- UL94 V-0
- Shell Size - Insert :
- Mini DIN
- Shell Material :
- Iron
- Mounting Feature :
- Flange
- Datasheets
- MD-70SN
Receptacle, Female Sockets Iron Panel Mount 7 Positions Solder Silver Nickel Bulk Keyed Push-Pull
MD-70SN Overview
Packaging for this item is Receptacle, Female Sockets.There is a mounting type of Panel Mount for this device.It is necessary to use a Bulk case for packaging the product.This product is part of the MD-SN Series.You should use it when it's below 105°C.A minimum temperature of -20°C is required for the operation of this device.Flanges, Panel is used to mount the part.In this case, the device operates at -20°C~105°C Operating Temperature.
MD-70SN Features
MD-SN series
MD-70SN Applications
There are a lot of CUI Devices
MD-70SN Circular Connectors applications.
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
