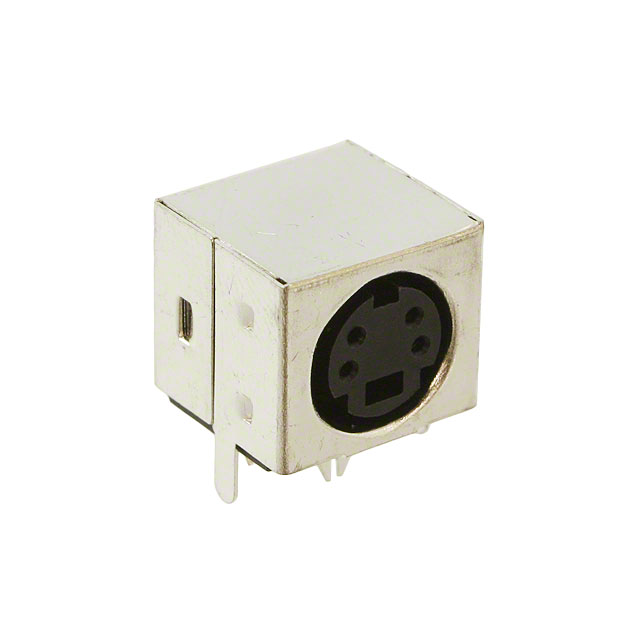

MD-40FC
Or copy the link below:
- Mfr.Part #
- MD-40FC
- Manufacturer
- CUI Devices
- Package / Case
- Datasheet
- Download
- Description
- CONN JACK FMALE MINI DIN 4P SLDR
- Stock
- 4,843
- In Stock ：
- 4,843
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- CUI Devices
- Product Category :
- Circular Connector Assemblies
- Polarization Key :
- POLAR PIN POSITION
- Body Depth :
- 0.52 inch
- Contact Resistance :
- 30mOhm
- Operating Temperature :
- -40°C~85°C
- Pbfree Code :
- yes
- Lead Free :
- Lead Free
- Orientation :
- Keyed
- Feature :
- Board Guide, Board Lock, Ground
- RoHS Status :
- RoHS Compliant
- Current Rating :
- 2A
- DIN Conformance :
- yes
- Contact Material :
- Phosphor Bronze
- Body Breadth :
- 0.51 inch
- Mount :
- Through Hole
- Durability :
- 1000 Cycles
- Insulation Resistance :
- 50000000Ohm
- Packaging :
- Tray
- Termination :
- Solder
- Total Number of Contacts :
- 4
- Contact Style :
- RND PIN-SKT
- Fastening Type :
- Push-Pull
- Material Flammability Rating :
- UL94 V-0
- Published :
- 2015
- Connector Type :
- Jack, Female Sockets
- Contact Finish - Mating :
- Silver
- Mounting Type :
- Through Hole, Right Angle
- Reliability :
- COMMERCIAL
- Shell Material :
- Polybutylene Terephthalate (PBT)
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Current Rating (Amps) :
- 1A 2A
- Voltage - Rated :
- 100VAC 12VDC
- Shielding :
- Shielded
- Dielectric Withstanding Voltage :
- 250VAC V
- Body Length or Diameter :
- 0.56 inch
- Series :
- MD-FC
- Factory Lead Time :
- 7 Weeks
- Number of Positions :
- 4
- Shell Size - Insert :
- Mini DIN
- Number of Ports :
- 1
- Datasheets
- MD-40FC
MD-40FC Documents
Jack, Female Sockets Polybutylene Terephthalate (PBT) Through Hole, Right Angle 4 Positions Solder Silver Tray Keyed Push-Pull
MD-40FC Overview
Currently, it is packaged in Jack, Female Sockets.The mounting type of the device is Through Hole, Right Angle.A Tray case is used to package the product.A product of the MD-FC Series, it belongs to the range of products of that series.A number of features make the Board Guide, Board Lock, Ground feature more powerful.Through Hole represents the mounting point for the part.-40°C~85°C Operating Temperature is the default operating temperature for the device.
MD-40FC Features
MD-FC series
MD-40FC Applications
There are a lot of CUI Devices
MD-40FC Circular Connectors applications.
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
- All Electrical Machinery
- Refrigeration control
