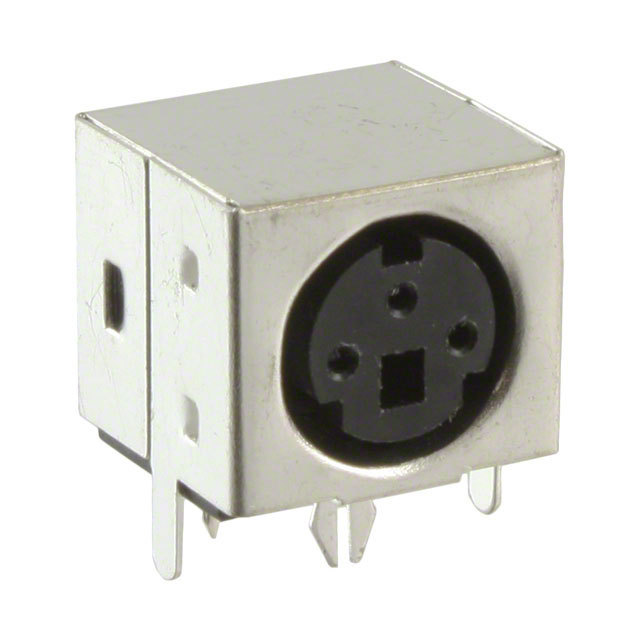

MD-30FC
Or copy the link below:
- Mfr.Part #
- MD-30FC
- Manufacturer
- CUI Devices
- Package / Case
- Datasheet
- Download
- Description
- CONN JACK FMALE MINI DIN 3P SLDR
- Stock
- 127
- In Stock ：
- 127
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- CUI Devices
- Product Category :
- Circular Connector Assemblies
- Length - Termination :
- 0.14 inch
- Durability :
- 1000 Cycles
- Insulation Resistance :
- 50000000Ohm
- Reliability :
- COMMERCIAL
- Dielectric Withstanding Voltage :
- 250VAC V
- Published :
- 2015
- Operating Temperature :
- -40°C~85°C
- Lead Free :
- Lead Free
- Feature :
- Board Guide, Board Lock, Ground
- RoHS Status :
- RoHS Compliant
- Contact Finish - Mating :
- Silver
- Shell Size - Insert :
- Mini DIN
- DIN Conformance :
- yes
- Factory Lead Time :
- 7 Weeks
- Termination :
- Solder
- Mounting Type :
- Through Hole, Right Angle
- Body Depth :
- 0.52 inch
- Body Length or Diameter :
- 0.56 inch
- Polarization Key :
- POLAR PIN POSITION
- Packaging :
- Tray
- Body Breadth :
- 0.51 inch
- Material Flammability Rating :
- UL94 V-0
- Shell Material :
- Polybutylene Terephthalate (PBT)
- Current Rating :
- 2A
- Connector Type :
- Jack, Female Sockets
- Contact Style :
- RND PIN-SKT
- Current Rating (Amps) :
- 1A 2A
- Mount :
- Through Hole
- Orientation :
- Keyed
- Shielding :
- Shielded
- Total Number of Contacts :
- 3
- Number of Positions :
- 3
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Fastening Type :
- Push-Pull
- Number of Ports :
- 1
- Contact Material :
- Phosphor Bronze
- Voltage - Rated :
- 100VAC 12VDC
- Pbfree Code :
- yes
- Series :
- MD-FC
- Datasheets
- MD-30FC
MD-30FC Documents
Jack, Female Sockets Polybutylene Terephthalate (PBT) Through Hole, Right Angle 3 Positions Solder Silver Tray Keyed Push-Pull
MD-30FC Overview
You get it in Jack, Female Sockets packaging.Mounting type Through Hole, Right Angle is selected for the device.Packaged in a Tray case.A member of the MD-FC Series.This feature renders it more powerful in a number of ways because of its Board Guide, Board Lock, Ground feature.There's a Through Hole mount on the part.Device runs in -40°C~85°C operating temperature.
MD-30FC Features
MD-FC series
MD-30FC Applications
There are a lot of CUI Devices
MD-30FC Circular Connectors applications.
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
