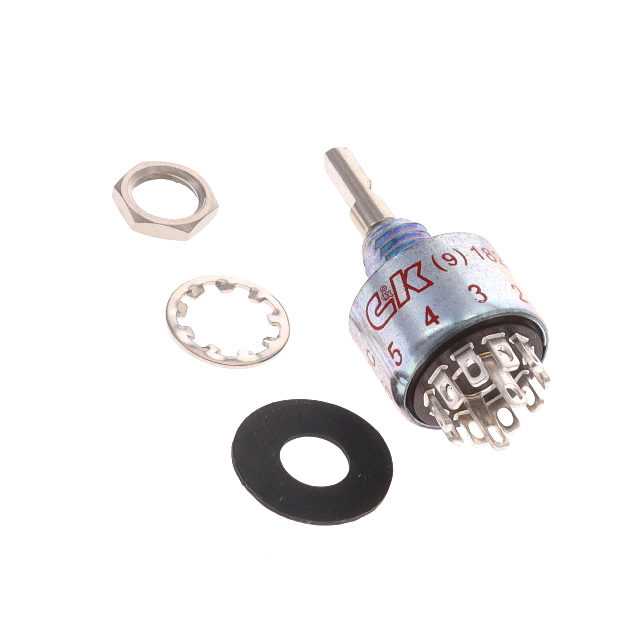

MB05L1NZQF

Manufacturer :

C&K

Product Category :

Contact Material :

COPPER ALLOY

Mount :

Panel

Index Stops :

FIXED

Published :

2014

Actuator Length :

10.16mm

Number of Positions :

5

Contact Finish :

Silver

Actuator Type :

Flatted (3.17mm Dia)

Max Current Rating :

250mA

Max Operating Temperature :

85°C

Number of Decks :

1

Termination Style :

Solder Lug

Max Voltage Rating (DC) :

28V

Termination :

Solder

Panel Cutout Dimensions :

Circular - 6.60mm Dia

Radiation Hardening :

No

Electrical Life :

10000 Cycles

Index Angle :

36 °

Current Rating (Amps) :

250mA AC/DC

Min Operating Temperature :

-30°C

Voltage - Rated DC :

28V

Depth :

13.34mm

Length :

13.34mm

Contact Timing :

Non-Shorting (BBM)

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Orientation :

Straight

Current Rating :

250mA

RoHS Status :

ROHS3 Compliant

Operating Force :

2.880 ~ 5.041gfm

Circuit per Deck :

DP5T

Factory Lead Time :

20 Weeks

Housing Material :

Zinc

Feature :

IP67 - Dust Tight, Waterproof

Max Voltage Rating (AC) :

125V

Series :

M

Number of Poles per Deck :

2

Mounting Type :

Panel Mount

Actuator Material :

Stainless Steel

Contact Style :

Non-Shorting

Depth Behind Panel :

14.86mm

Voltage - Rated AC :

125V
