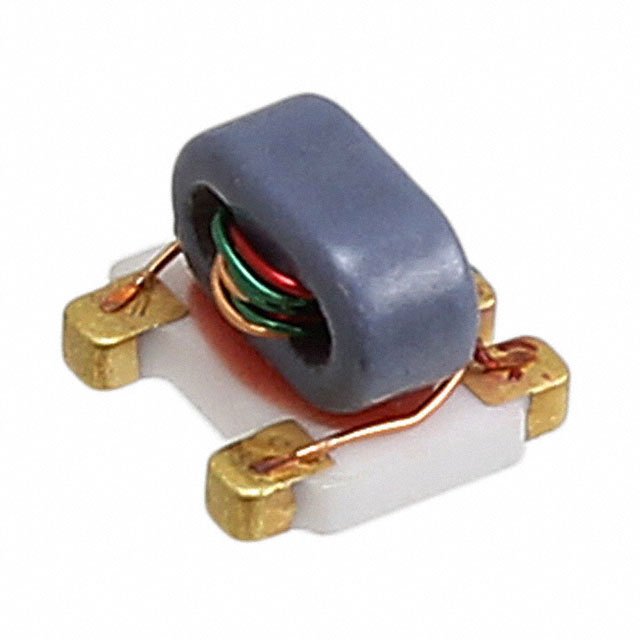

MABAES0061
Or copy the link below:
- Mfr.Part #
- MABAES0061
- Manufacturer
- MACOM Technology Solutions
- Package / Case
- 6-SMD (5 Leads), Flat Lead
- Datasheet
- Download
- Description
- BALUN 2MHZ-800MHZ 1:4 6SMD FLAT
- Stock
- 8,538
- In Stock ：
- 8,538
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- MACOM Technology Solutions
- Product Category :
- Balun
- Insertion Loss (dB) :
- 3 dB
- Mount :
- Surface Mount
- Factory Lead Time :
- 8 Weeks
- Packaging :
- Tape and Reel (TR)
- Mounting Type :
- Surface Mount
- Depth :
- 3.81mm
- Width :
- 3.81mm
- Max DC Current :
- 240mA
- Frequency Range :
- 2MHz~800MHz
- Turns Ratio - Primary:Secondary :
- 1:2
- Lead Free :
- Lead Free
- Termination :
- SMD/SMT
- Min Operating Temperature :
- -40°C
- Number of Pins :
- 5
- Cut-off Frequency-Min :
- 2MHz
- Max Operating Temperature :
- 85°C
- Insertion Loss (Max) :
- 3.0dB
- RoHS Status :
- ROHS3 Compliant
- Additional Feature :
- BREADTH AND HEIGHT DIMENSION INCLUDES TERMINAL ALSO
- Cut-off Frequency-Max :
- 800MHz
- Published :
- 2008
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Height :
- 2.67mm
- Pbfree Code :
- yes
- Package / Case :
- 6-SMD (5 Leads), Flat Lead
- Radiation Hardening :
- No
- Power Rating :
- 250mW
- Impedance - Unbalanced/Balanced :
- 1:4
- Transformer Type :
- RF TRANSFORMER
- Length :
- 3.81mm
- ECCN Code :
- EAR99
- Physical Dimension :
- L3.81XB2.79XH3.8 (mm)
- Datasheets
- MABAES0061
MABAES0061 Documents
MABAES0061 datasheet pdf and Balun product details from M/A-Com Technology Solutions stock available at
Features:
- Frequency range of 2MHz to 800MHz
- 1:4 impedance ratio
- 6 SMD construction
- Flatpack design
- Low insertion loss
- High isolation
- High return loss
Applications: The MA-COM Balun MABAES0061 is suitable for a variety of applications, including RF and microwave systems, antenna systems, and wireless communication systems. It can be used for impedance matching, signal splitting, and signal combining.
