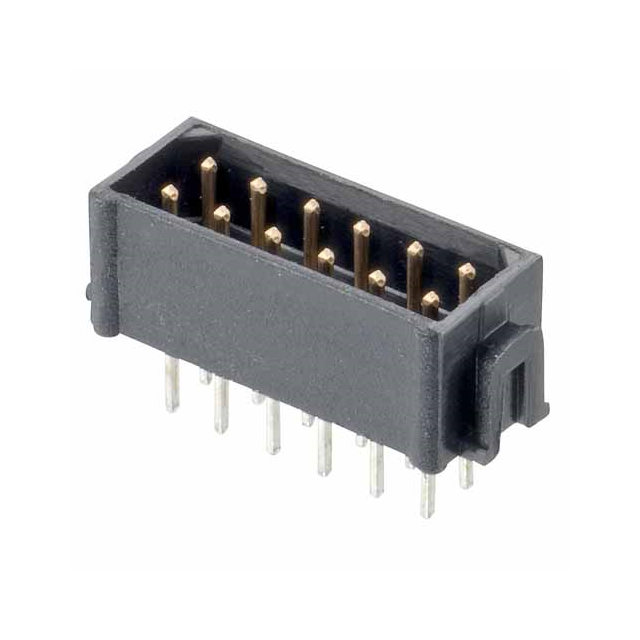

M80-8541445

Manufacturer :

Harwin

Product Category :

Headers, Male Pins

Body Length or Diameter :

0.691 inch

Voltage - Rated :

800V

Number of Conductors :

ONE

Row Spacing - Mating :

0.079 (2.00mm)

DIN Conformance :

No

Number of Positions Loaded :

All

Number of Rows :

2

Reference Standard :

UL

Insulation Color :

Black

Series :

Datamate L-Tek

IEC Conformance :

No

Number of Positions :

14

Pbfree Code :

yes

Shrouding :

Shrouded - 4 Wall

Contact Length - Post :

0.118 3.00mm

Option :

GENERAL PURPOSE

Packaging :

Tube

Insulation Height :

0.219 5.56mm

Operating Temperature :

-55°C~125°C

Number Of PCB Rows :

2

Mating Contact Pitch :

0.079 inch

Insulation Resistance :

100000000Ohm

Current Rating (Amps) :

2.2A

Fastening Type :

Latch Holder

Filter Feature :

No

Plating Thickness :

30μin

ECCN Code :

EAR99

RoHS Status :

ROHS3 Compliant

Length - Termination :

0.118 inch

Contact Finish Thickness - Mating :

29.5μin 0.75μm

HTS Code :

8536.69.40.40

Stack Height (Mating) :

7.23mm 7.85mm 10.2mm 13.51mm

Insulation Material :

Polyamide (PA46), Nylon 4/6

Durability :

500 Cycles

Polarization Key :

POLARIZED HOUSING

PCB Contact Pattern :

RECTANGULAR

UL Flammability Code :

94V-0

Material Flammability Rating :

UL94 V-0

Reliability :

COMMERCIAL

Contact Shape :

Circular

Connector Type :

Header

Mounting Type :

Through Hole

Dielectric Withstanding Voltage :

360VAC V

Termination :

Solder

Factory Lead Time :

11 Weeks

MIL Conformance :

No

Mixed Contacts :

No

JESD-609 Code :

e4

Contact Material :

Phosphor Bronze

Mounting Option 1 :

LOCKING

Contact Finish - Mating :

Gold

Style :

Board to Board or Cable

Pitch - Mating :

0.079 2.00mm

Additional Feature :

POLARIZED, SHROUDED

Contact Type :

Male Pin
