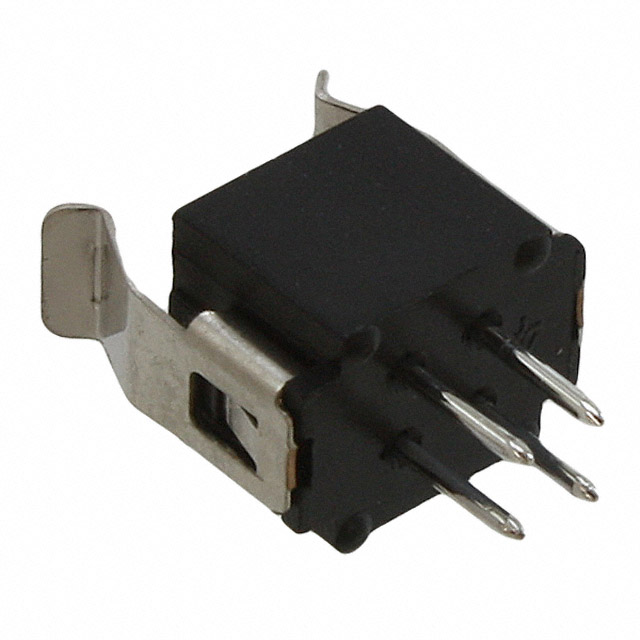

M80-8150422

Manufacturer :

Harwin

Product Category :

Headers, Male Pins

IEC Conformance :

No

DIN Conformance :

No

ECCN Code :

EAR99

PCB Contact Pattern :

RECTANGULAR

Mixed Contacts :

No

Pitch - Mating :

0.079 2.00mm

Mount :

Through Hole

Operating Temperature :

-55°C~125°C

Fastening Type :

Friction Lock

Contact Gender :

Male

Published :

2009

Style :

Board to Board or Cable

Contact Resistance :

25mOhm

Contact Finish - Mating :

Gold

Insulation Resistance :

100000000Ohm

Housing Color :

Black

Plating Thickness :

30μin

REACH SVHC :

No SVHC

Orientation :

Straight

JESD-609 Code :

e0

Contact Finish Thickness - Mating :

29.5μin 0.75μm

Row Spacing - Mating :

0.079 (2.00mm)

Contact Material :

Phosphor Bronze

Depth :

5.98mm

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Material Flammability Rating :

UL94 V-0

Shrouding :

Shrouded - 4 Wall

Packaging :

Tube

Connector Type :

PLUG

RoHS Status :

Non-RoHS Compliant

Durability :

500 Cycles

Contact Finish - Post :

Tin-Lead

Pbfree Code :

No

Number of Positions :

4

Additional Feature :

LATCHED, POLARIZED, SHROUDED

Length :

8mm

Contact Length - Post :

0.118 3.00mm

Factory Lead Time :

6 Weeks

Mounting Type :

Through Hole

Number of Conductors :

ONE

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Series :

Datamate L-Tek

Mating Contact Pitch :

0.079 inch

Number of Rows :

2

Housing Material :

Polyester

Option :

GENERAL PURPOSE

Voltage - Rated :

800V

Insulation Height :

0.219 5.56mm

Insulation Material :

Polyester, Glass Filled

Current Rating :

3A

Reliability :

COMMERCIAL

Polarization Key :

POLARIZED HOUSING

Max Voltage Rating (AC) :

120V

Max Current Rating :

3A

Contact Type :

Male Pin

Current Rating (Amps) :

2.2A

Number of Positions Loaded :

All

Number Of PCB Rows :

2

Filter Feature :

No

Reference Standard :

UL

Reach Compliance Code :

not_compliant

Termination :

Solder

Contact Finish Thickness - Post :

118.1μin 3.00μm

Stack Height (Mating) :

7.23mm 7.85mm 10.2mm 13.51mm

Contact Shape :

Circular

MIL Conformance :

No
