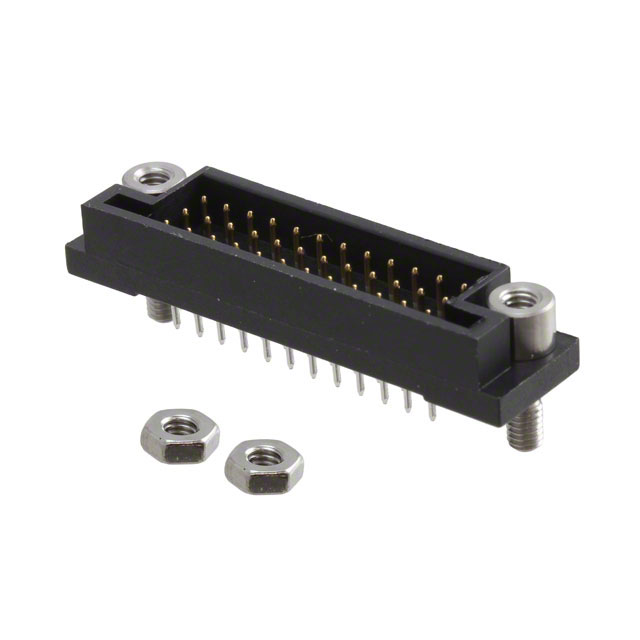

M80-7003642

Manufacturer :

Harwin

Product Category :

Headers, Male Pins

Housing Material :

Polyamide

Published :

2010

UL Flammability Code :

94V-0

Gender :

Male

MIL Conformance :

No

Length :

37.1mm

Feature :

Mating Flange, Mounting Flange, Mounting Hardware

Contact Material :

Phosphor Bronze

Mounting Type :

Through Hole

Durability :

500 Cycles

Contact Finish - Mating :

Gold

Pitch - Mating :

0.079 2.00mm

Fastening Type :

Threaded

Operating Temperature :

-55°C~125°C

Orientation :

Straight

PCB Contact Row Spacing :

2.0066 mm

PCB Contact Pattern :

RECTANGULAR

Contact Shape :

Circular

DIN Conformance :

No

Withdrawl Force-Min :

.199882 N

Number Of PCB Rows :

3

Material Flammability Rating :

UL94 V-0

Mixed Contacts :

No

Mount :

Through Hole

Insulation Material :

Polyamide (PA46), Nylon 4/6

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Number of Rows :

3

JESD-609 Code :

e3

Contact Finish Thickness - Mating :

29.5μin 0.75μm

Option :

GENERAL PURPOSE

Number of Positions :

36

Factory Lead Time :

9 Weeks

Terminal Pitch :

2mm

Housing Color :

Black

Series :

Datamate J-Tek

Style :

Board to Board or Cable

Contact Finish Thickness - Post :

118.1μin 3.00μm

Pbfree Code :

yes

Voltage - Rated :

120V

Contact Type :

Male Pin

Contact Resistance :

25mOhm

Contact Length - Post :

0.118 3.00mm

Shrouding :

Shrouded - 4 Wall

Additional Feature :

PANEL MOUNTABLE

Number of Positions Loaded :

All

Current Rating :

3A

Packaging :

Tube

IEC Conformance :

No

Connector Type :

Header

Filter Feature :

No

Insertion Force-Max :

2.78 N

Depth :

9.1mm

Current Rating (Amps) :

2.2A

Row Spacing - Mating :

0.079 (2.00mm)

Contact Finish - Post :

Tin

RoHS Status :

ROHS3 Compliant

Insulation Resistance :

100000000Ohm

Reliability :

COMMERCIAL

Reference Standard :

UL

Termination :

Solder

REACH SVHC :

No SVHC

Number of Conductors :

ONE

Insulation Height :

0.244 6.20mm

Mating Contact Pitch :

0.079 inch

Max Current Rating :

3A
