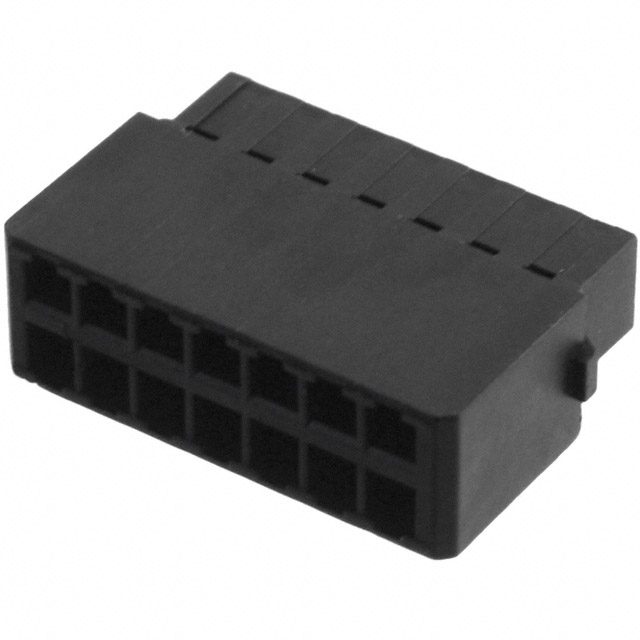

M80-6911498

Manufacturer :

Harwin

Product Category :

Rectangular Connector Housings

Contact Gender :

FEMALE

RoHS Status :

ROHS3 Compliant

Mount :

Cable, Free Hanging

Mounting Type :

Free Hanging (In-Line)

Durability :

400 Cycles

Current Rating :

3A

MIL Conformance :

No

REACH SVHC :

No SVHC

Polarization Key :

POLARIZED HOUSING

Contact Type :

Female Socket

Note :

Contacts Not Included

Wire Gauge (Min) :

28 AWG

Total Number of Contacts :

14

HTS Code :

8536.69.40.40

Filter Feature :

No

DIN Conformance :

No

Series :

Datamate Trio-Tek

Option :

GENERAL PURPOSE

Number of Positions :

14

IEC Conformance :

No

Wire Gauge (Max) :

22 AWG

Packaging :

Bulk

Reference Standard :

UL

UL Flammability Code :

94V-0

Max Operating Temperature :

125°C

Insulation Resistance :

100MOhm

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Row Spacing :

0.079 (2.00mm)

Voltage - Rated :

360V

Fastening Type :

Latch Lock

Contact Termination :

Crimp

Published :

2011

Orientation :

Straight

Mixed Contacts :

No

Housing Material :

Polyamide

Pbfree Code :

yes

Length :

16.5mm

Reliability :

COMMERCIAL

Additional Feature :

RoHS Compliant

Factory Lead Time :

9 Weeks

Width :

11.1mm

Connector Type :

Receptacle

Color :

Black

Depth :

5.5mm

Pitch :

0.079 2.00mm

Number of Rows :

2

Min Operating Temperature :

-55°C

Body/Shell Style :

PLUG

Radiation Hardening :

No

ECCN Code :

EAR99

Rated Current (Signal) :

3A
