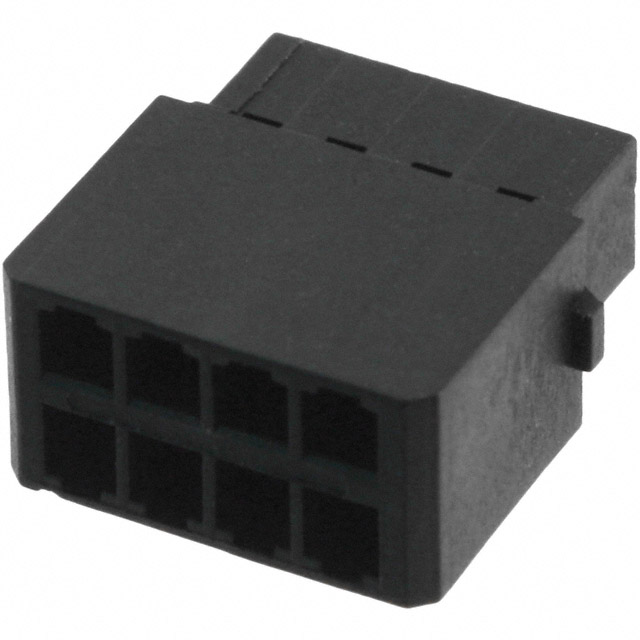

M80-6910898

Manufacturer :

Harwin

Product Category :

Rectangular Connector Housings

ECCN Code :

EAR99

Color :

Black

Packaging :

Bulk

Radiation Hardening :

No

Contact Type :

Female Socket

Published :

2008

Depth :

11.1mm

Body/Shell Style :

PLUG

Length :

11mm

Mounting Type :

Free Hanging (In-Line)

Fastening Type :

Latch Lock

Pitch :

0.079 2.00mm

UL Flammability Code :

94V-0

Insulation Resistance :

100MOhm

Max Operating Temperature :

125°C

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

RoHS Status :

ROHS3 Compliant

Mount :

Cable, Free Hanging

Housing Material :

Polyamide

Option :

GENERAL PURPOSE

Connector Type :

Receptacle

Reference Standard :

UL

Polarization Key :

POLARIZED HOUSING

DIN Conformance :

No

Wire Gauge (Min) :

28 AWG

Insulation :

Insulated

Width :

11.1mm

Filter Feature :

No

Series :

Datamate Trio-Tek

Factory Lead Time :

9 Weeks

Rated Current (Signal) :

3A

Pbfree Code :

yes

Durability :

400 Cycles

Orientation :

Straight

Number of Positions :

8

Total Number of Contacts :

8

Min Operating Temperature :

-55°C

Additional Feature :

RoHS Compliant

Note :

Contacts Not Included

Current Rating :

3A

Row Spacing :

0.079 (2.00mm)

Reliability :

COMMERCIAL

Wire Gauge (Max) :

22 AWG

Contact Gender :

FEMALE

IEC Conformance :

No

MIL Conformance :

No

Contact Termination :

Crimp

Max Voltage Rating (AC) :

120V

Voltage - Rated :

360V

Number of Rows :

2

Mixed Contacts :

No

REACH SVHC :

No SVHC

Max Current Rating :

3A
