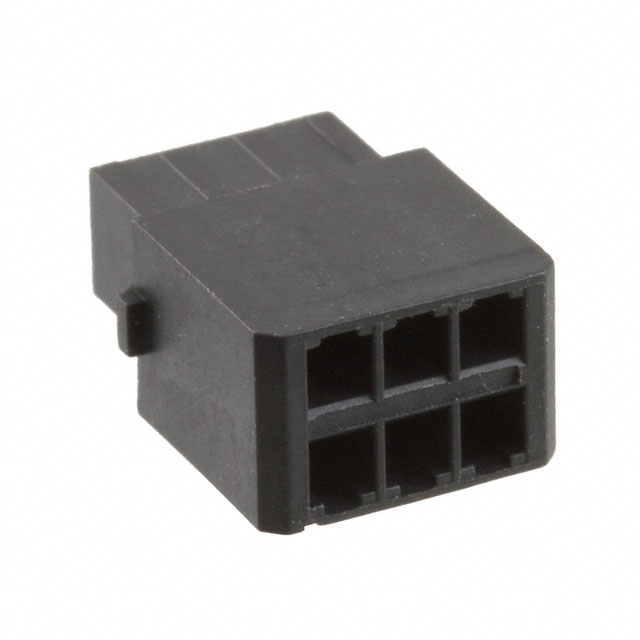

M80-6910698

Manufacturer :

Harwin

Product Category :

Rectangular Connector Housings

Voltage - Rated :

360V

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Packaging :

Bulk

Pitch :

0.079 2.00mm

Note :

Contacts Not Included

Contact Type :

Female Socket

Mounting Type :

Free Hanging (In-Line)

RoHS Status :

ROHS3 Compliant

Contact Gender :

FEMALE

Color :

Black

Housing Material :

Polyamide

Factory Lead Time :

9 Weeks

MIL Conformance :

No

Series :

Datamate Trio-Tek

Current Rating :

3A

Fastening Type :

Latch Lock

Max Operating Temperature :

125°C

Additional Feature :

RoHS Compliant

UL Flammability Code :

94V-0

DIN Conformance :

No

Total Number of Contacts :

6

Number of Rows :

2

Connector Type :

Receptacle

Radiation Hardening :

No

Durability :

400 Cycles

Row Spacing :

0.079 (2.00mm)

Rated Current (Signal) :

3A

Number of Positions :

6

Insulation Resistance :

100MOhm

Contact Termination :

Crimp

Wire Gauge (Max) :

22 AWG

Reference Standard :

UL

REACH SVHC :

No SVHC

Published :

2011

Mixed Contacts :

No

Wire Gauge (Min) :

28 AWG

Length :

8.5mm

Option :

GENERAL PURPOSE

Orientation :

Straight

Body/Shell Style :

PLUG

Polarization Key :

POLARIZED HOUSING

Depth :

5.5mm

Width :

11.1mm

Mount :

Cable, Free Hanging

Filter Feature :

No

Min Operating Temperature :

-55°C

ECCN Code :

EAR99

Pbfree Code :

yes

Reliability :

COMMERCIAL

IEC Conformance :

No

Insulation :

Insulated
