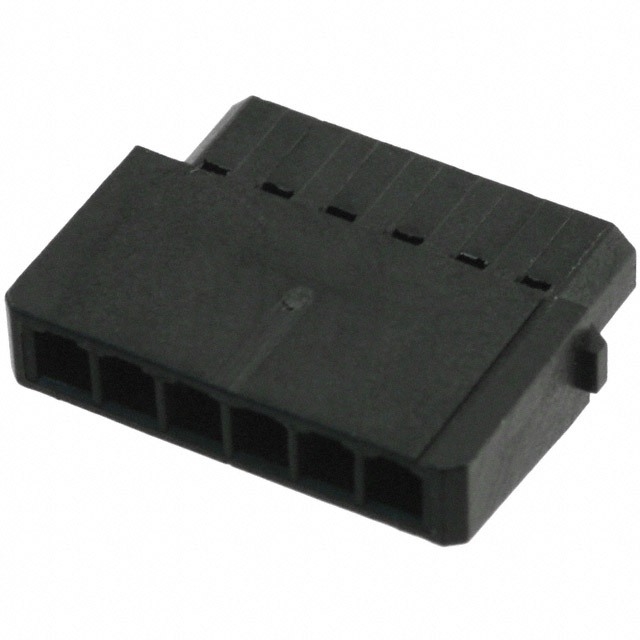

M80-6900698

Manufacturer :

Harwin

Product Category :

Rectangular Connector Housings

Note :

Contacts Not Included

Fastening Type :

Latch Lock

Connector Type :

Receptacle

Option :

GENERAL PURPOSE

Max Voltage Rating (AC) :

120V

Max Operating Temperature :

125°C

Total Number of Contacts :

6

UL Flammability Code :

94V-0

Pbfree Code :

yes

Mounting Type :

Free Hanging (In-Line)

Contact Type :

Female Socket

Number of Positions :

6

Max Current Rating :

3A

Mount :

Cable, Free Hanging

Number of Rows :

1

Published :

2011

Housing Material :

Polyamide

Contact Gender :

FEMALE

Filter Feature :

No

Wire Gauge (Min) :

28 AWG

Rated Current (Signal) :

3A

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

MIL Conformance :

No

Insulation :

Insulated

Reference Standard :

UL

Durability :

400 Cycles

Contact Resistance :

25mOhm

Factory Lead Time :

9 Weeks

Orientation :

Straight

Reliability :

COMMERCIAL

Radiation Hardening :

No

Series :

Datamate Trio-Tek

Contact Termination :

Crimp

Mixed Contacts :

No

DIN Conformance :

No

Current Rating :

3A

Color :

Black

Insertion Force-Max :

2.78 N

Wire Gauge (Max) :

22 AWG

Insulation Resistance :

100MOhm

Min Operating Temperature :

-55°C

RoHS Status :

ROHS3 Compliant

ECCN Code :

EAR99

IEC Conformance :

No

Voltage - Rated :

120V

Width :

14mm

REACH SVHC :

No SVHC

Body/Shell Style :

PLUG

Packaging :

Bulk

Depth :

11.1mm

Length :

9mm

Pitch :

0.079 2.00mm
