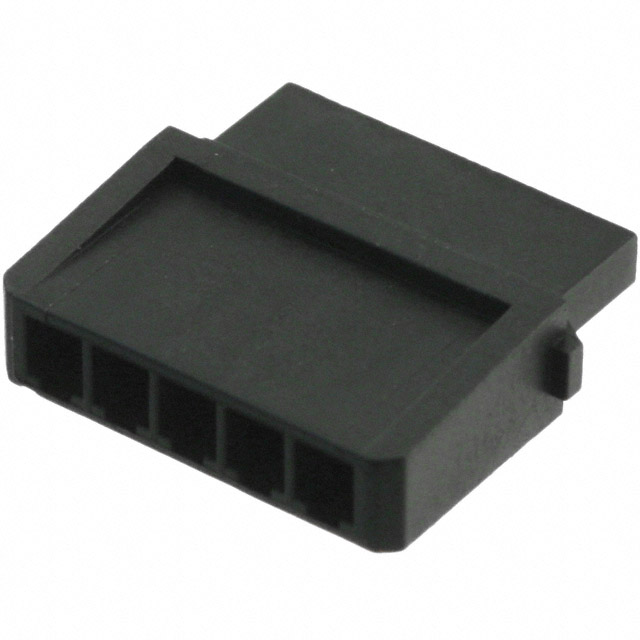

M80-6900598

Manufacturer :

Harwin

Product Category :

Rectangular Connector Housings

Fastening Type :

Latch Lock

Radiation Hardening :

No

Voltage - Rated :

120V

Max Operating Temperature :

125°C

Rated Current (Signal) :

3A

Factory Lead Time :

9 Weeks

Series :

Datamate Trio-Tek

Filter Feature :

No

Min Operating Temperature :

-55°C

Wire Gauge (Max) :

22 AWG

Length :

11.1mm

Insulation :

Insulated

Orientation :

Straight

Mixed Contacts :

No

DIN Conformance :

No

Option :

GENERAL PURPOSE

Body/Shell Style :

PLUG

Published :

2011

Width :

12mm

Contact Gender :

FEMALE

Contact Type :

Female Socket

Current Rating :

3A

Housing Material :

Polyamide

Pbfree Code :

yes

Color :

Black

ECCN Code :

EAR99

RoHS Status :

ROHS3 Compliant

Wire Gauge (Min) :

28 AWG

Insertion Force-Max :

2.78 N

Packaging :

Bulk

Connector Type :

Receptacle

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Contact Termination :

Crimp

Reference Standard :

UL

MIL Conformance :

No

UL Flammability Code :

94V-0

Insulation Resistance :

100MOhm

Durability :

400 Cycles

Depth :

3.5mm

Number of Rows :

1

Mount :

Cable, Free Hanging

Reliability :

COMMERCIAL

Note :

Contacts Not Included

Total Number of Contacts :

5

IEC Conformance :

No

Pitch :

0.079 2.00mm

Mounting Type :

Free Hanging (In-Line)

REACH SVHC :

No SVHC

Number of Positions :

5
