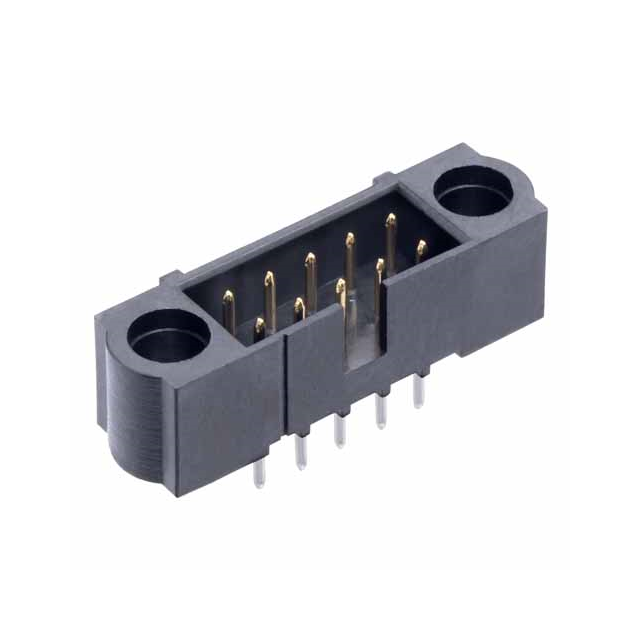

M80-5201022

Manufacturer :

Harwin

Product Category :

Headers, Male Pins

Reference Standard :

UL

Number of Positions Loaded :

All

Number of Positions :

10

RoHS Status :

Non-RoHS Compliant

Insulation Material :

Polyphenylene Sulfide (PPS), Glass Filled

Mixed Contacts :

No

Style :

Board to Board or Cable

Polarization Key :

POLARIZED HOUSING

Series :

Datamate J-Tek

Contact Finish - Post :

Tin-Lead

Additional Feature :

PANEL MOUNTABLE, POLARIZED, SHROUDED

Plating Thickness :

30μin

Connector Type :

Header

Body Length or Diameter :

0.787 inch

Contact Length - Post :

0.128 3.25mm

Number Of PCB Rows :

2

IEC Conformance :

No

Voltage - Rated :

120V

MIL Conformance :

No

DIN Conformance :

No

Filter Feature :

No

ECCN Code :

EAR99

Contact Finish - Mating :

Gold

Fastening Type :

Push-Pull

Mount :

Through Hole

Pbfree Code :

No

Factory Lead Time :

11 Weeks

Number of Conductors :

ONE

Insulation Height :

0.220 5.60mm

Stack Height (Mating) :

7.3mm 7.7mm 9.75mm 10.75mm 13.35mm 14.75mm

Contact Type :

Male Pin

Termination :

Solder

Row Spacing - Mating :

0.079 (2.00mm)

Published :

2013

Operating Temperature :

-55°C~125°C

Feature :

Keying Slot, Mating Flange

Material Flammability Rating :

UL94 V-0

Durability :

500 Cycles

Shrouding :

Shrouded - 4 Wall

Contact Finish Thickness - Mating :

29.5μin 0.75μm

Reach Compliance Code :

not_compliant

PCB Contact Pattern :

RECTANGULAR

Option :

GENERAL PURPOSE

JESD-609 Code :

e0

Contact Finish Thickness - Post :

118.1μin 3.00μm

Packaging :

Tube

Mounting Type :

Through Hole

Current Rating (Amps) :

2.2A

Number of Rows :

2

Contact Material :

Phosphor Bronze

Mating Contact Pitch :

0.079 inch

Contact Shape :

Circular

Pitch - Mating :

0.079 2.00mm

Reliability :

COMMERCIAL

Contact Gender :

Male

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Insulation Color :

Black

HTS Code :

8536.69.40.40

UL Flammability Code :

94V-0
