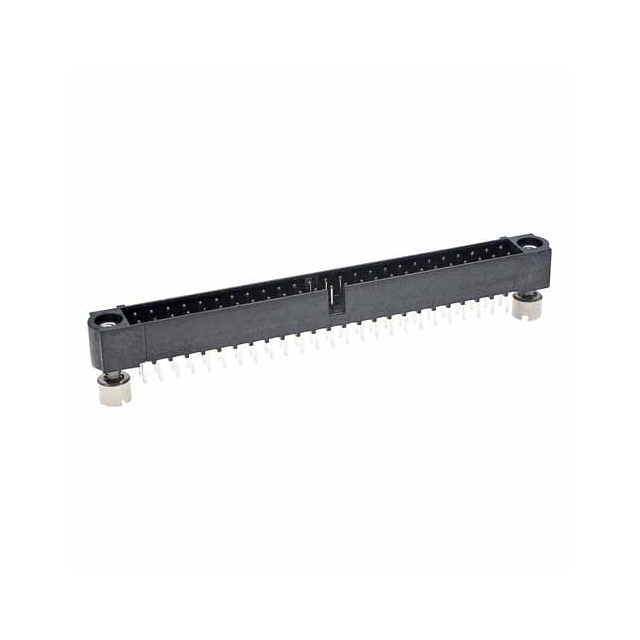

M80-5105022

Manufacturer :

Harwin

Product Category :

Headers, Male Pins

Insulation Material :

Polyphenylene Sulfide (PPS), Glass Filled

Contact Type :

Male Pin

Published :

2013

Filter Feature :

No

Series :

Datamate J-Tek

Shrouding :

Shrouded - 4 Wall

Number Of PCB Rows :

2

Plating Thickness :

30μin

Termination :

Solder

Current Rating (Amps) :

2.2A

Option :

GENERAL PURPOSE

Number of Positions :

50

Reliability :

COMMERCIAL

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

RoHS Status :

Non-RoHS Compliant

Current Rating :

3A

Row Spacing - Mating :

0.079 (2.00mm)

Contact Material :

Phosphor Bronze

Feature :

Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware

DIN Conformance :

No

Insulation Height :

0.220 5.60mm

Voltage - Rated :

800V

Contact Length - Post :

0.130 3.30mm

Contact Finish Thickness - Post :

118.1μin 3.00μm

Pbfree Code :

No

IEC Conformance :

No

Contact Gender :

Male

Mixed Contacts :

No

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

PCB Contact Pattern :

RECTANGULAR

Insulation Color :

Black

MIL Conformance :

No

JESD-609 Code :

e0

UL Flammability Code :

94V-0

Fastening Type :

Threaded

Polarization Key :

POLARIZED HOUSING

Pitch - Mating :

0.079 2.00mm

Material Flammability Rating :

UL94 V-0

Number of Conductors :

ONE

Number of Positions Loaded :

All

Mating Contact Pitch :

0.079 inch

Number of Rows :

2

Radiation Hardening :

No

Contact Finish - Post :

Tin-Lead

Connector Type :

Header

Contact Finish Thickness - Mating :

29.5μin 0.75μm

Operating Temperature :

-55°C~125°C

Mounting Type :

Through Hole

Insulation Resistance :

100000000Ohm

Contact Shape :

Circular

Housing Material :

Polyphenylene

Packaging :

Tube

Style :

Board to Board or Cable

Mount :

Through Hole

Stack Height (Mating) :

7.3mm 7.7mm 9.75mm 10.75mm 13.35mm 14.75mm

Reference Standard :

UL

Contact Finish - Mating :

Gold

Length - Termination :

0.13 inch

Factory Lead Time :

9 Weeks
