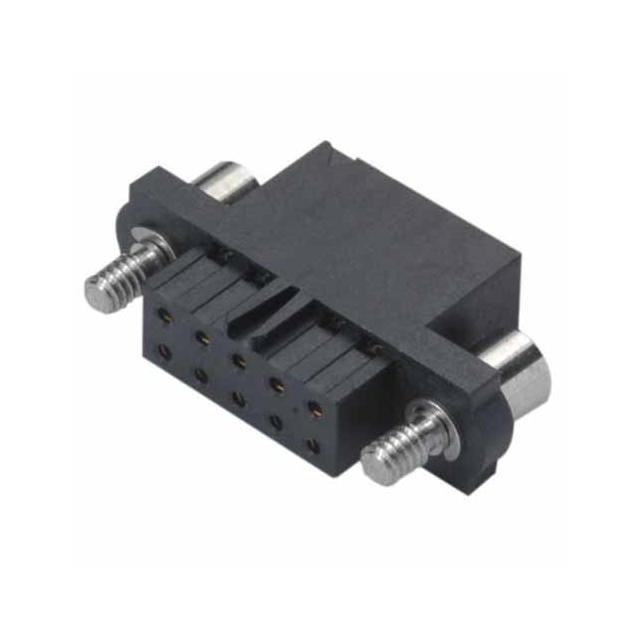

M80-4563498

Manufacturer :

Harwin

Product Category :

Rectangular Connector Housings

Insulation Resistance :

100000000Ohm

Operating Temperature (Min) :

-55°C

ECCN Code :

EAR99

IEC Conformance :

No

Insulation Material :

Glass Filled Polyamide

Contact Termination :

Crimp

Connector Type :

Receptacle

Number of Rows :

2

UL Flammability Code :

94V-0

Note :

Contacts Not Included

Contact Type :

Female Socket

Option :

GENERAL PURPOSE

Fastening Type :

Screw Lock

Factory Lead Time :

13 Weeks

Packaging :

Bulk

Feature :

Jackscrews, Polarizing Key

Series :

Datamate Trio-Tek

Pitch :

0.079 2.00mm

Color :

Black

MIL Conformance :

No

Contact Material :

NOT SPECIFIED

Number of Positions :

34

Contact Finish - Mating :

NOT SPECIFIED

Additional Feature :

POLARIZED

Polarization Key :

POLARIZED HOUSING

DIN Conformance :

No

Rated Current (Signal) :

3A

Durability :

400 Cycles

Body Depth :

0.437 inch

RoHS Status :

ROHS3 Compliant

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

HTS Code :

8536.69.40.40

Filter Feature :

No

Total Number of Contacts :

34

Published :

2016

Reference Standard :

UL

Mounting Type :

Free Hanging (In-Line)

Contact Design :

PREASSEM CONN

Pbfree Code :

yes

Row Spacing :

0.079 (2.00mm)

Mixed Contacts :

No

Reliability :

COMMERCIAL
