M7767-46
- Mfr.Part #
- M7767-46
- Manufacturer
- Harwin
- Package / Case
- Datasheet
- Download
- Description

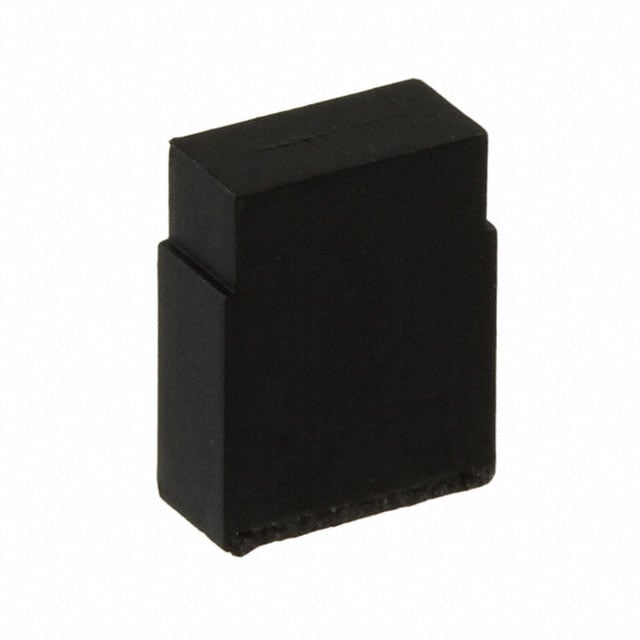

- JUMPER SKT CLOSED TOP BLACK
- Stock
- 2,053
- In Stock :
- 2,053
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Harwin
- Product Category :
- Shunts, Jumpers
- RoHS Status :
- ROHS3 Compliant
- Additional Feature :
- RoHS Compliant
- Mounting Option 1 :
- LOCKING
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Resistance :
- 30mOhm
- Max Current Rating :
- 3A
- Contact Finish Thickness :
- 118.1μin 3.00μm
- Factory Lead Time :
- 9 Weeks
- ECCN Code :
- EAR99
- Insulation Resistance :
- 1GOhm
- Type :
- Closed Top
- Height :
- 0.248 6.30mm
- Flammability Rating :
- UL94 V-0
- Pbfree Code :
- yes
- Rated Current (Signal) :
- 3A
- Housing Material :
- Polyester, Glass Filled
- Orientation :
- Straight
- Material Flammability Rating :
- UL94 V-0
- Published :
- 2011
- Durability :
- 50 Cycles
- REACH SVHC :
- No SVHC
- Body/Shell Style :
- PLUG
- Length :
- 5mm
- Pitch :
- 0.100 2.54mm
- JESD-609 Code :
- e3
- Reliability :
- COMMERCIAL
- Max Voltage Rating (AC) :
- 250V
- Contact Finish :
- Tin
- Number of Conductors :
- ONE
- Number of Positions or Pins (Grid) :
- 2 (1 x 2)
- Min Operating Temperature :
- -40°C
- Depth :
- 2.3mm
- Contact Gender :
- FEMALE
- Gender :
- Female Sockets
- Color :
- Black
- Series :
- M77
- Current Rating :
- 3A
- Max Operating Temperature :
- 85°C
- Contact Pattern :
- RECTANGULAR
- Number of Contacts :
- 2
- Contact Material :
- Bronze
- Reference Standard :
- UL
- Number of Rows :
- 1
- Packaging :
- Bulk
