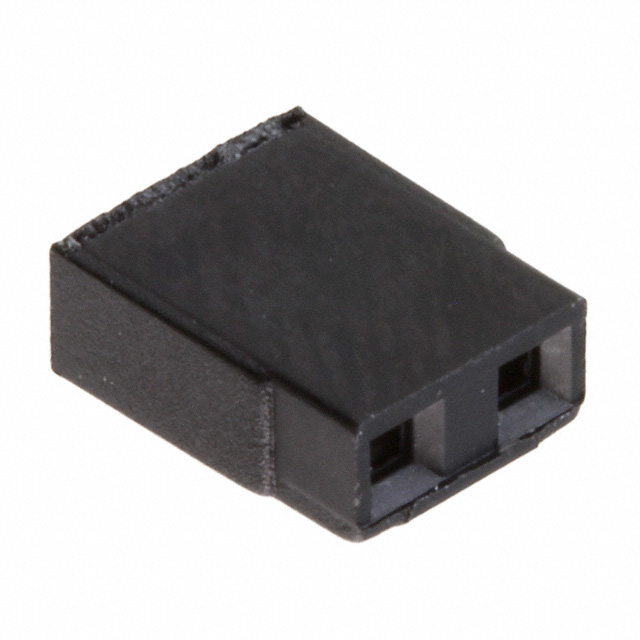

M7567-46
- Mfr.Part #
- M7567-46
- Manufacturer
- Harwin
- Package / Case
- Datasheet
- Download
- Description
- JUMPER SKT BLACK
- Stock
- 12,061
- In Stock :
- 12,061
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Harwin
- Product Category :
- Shunts, Jumpers
- Gender :
- Female Sockets
- Contact Pattern :
- RECTANGULAR
- Pbfree Code :
- yes
- Insulation Resistance :
- 1GOhm
- Rated Current (Signal) :
- 3A
- JESD-609 Code :
- e3
- Contact Finish :
- Tin
- Additional Feature :
- RoHS Compliant
- REACH SVHC :
- No SVHC
- Max Current Rating :
- 3A
- Packaging :
- Bulk
- Number of Positions or Pins (Grid) :
- 2 (1 x 2)
- Contact Style :
- SQ PIN-SKT
- Radiation Hardening :
- No
- Housing Material :
- Polyester, Glass Filled
- Depth :
- 2.3mm
- Min Operating Temperature :
- -40°C
- RoHS Status :
- ROHS3 Compliant
- Factory Lead Time :
- 9 Weeks
- Material Flammability Rating :
- UL94 V-0
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Max Voltage Rating (AC) :
- 250V
- Contact Finish Thickness :
- 118.1μin 3.00μm
- Number of Contacts :
- 2
- Max Voltage Rating (DC) :
- 250V
- Reliability :
- COMMERCIAL
- Contact Material :
- Bronze
- Orientation :
- Straight
- Length :
- 5mm
- Height :
- 0.248 6.30mm
- ECCN Code :
- EAR99
- Pitch :
- 0.100 2.54mm
- Durability :
- 50 Cycles
- Body/Shell Style :
- PLUG
- Number of Conductors :
- ONE
- Reference Standard :
- UL
- Max Operating Temperature :
- 85°C
- Series :
- M75
- Published :
- 2006
- Contact Resistance :
- 30mOhm
- Type :
- Open Top
- Number of Rows :
- 1
- Color :
- Black
