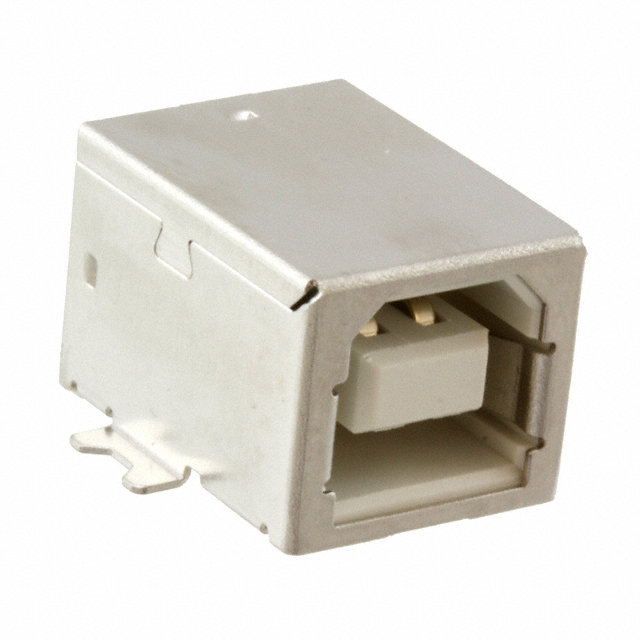

M701-370442

Manufacturer :

Harwin

Product Category :

USB, DVI, HDMI Connector Assemblies

PCB Contact Pattern :

RECTANGULAR

Empty Shell :

No

Number Of PCB Rows :

1

Polarization Key :

POLARIZED HOUSING

Mount :

Horizontal, Surface Mount

Gender :

Receptacle

Published :

2006

Body/Shell Style :

PLUG

Contact Style :

USB, SER B SQ

Operating Temperature (Min) :

-55°C

MIL Conformance :

No

Contact Plating :

Gold, Tin

Number of Conductors :

ONE

Specifications :

USB 2.0

Shielding :

Unshielded

Mating Information :

No

Pbfree Code :

yes

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Mixed Contacts :

No

JESD-609 Code :

e3

Total Number of Contacts :

4

Mounting Feature :

Horizontal

Shell Finish :

Nickel

Connector Type :

USB-B (USB TYPE-B)

Factory Lead Time :

13 Weeks

Current Rating (Amps) :

1.5A

Number of Ports :

1

Reliability :

COMMERCIAL

Filter Feature :

No

Contact Resistance :

30mOhm

Feature :

Board Guide, Solder Retention

Length :

16.2mm

Pitch :

1.25mm

Material Flammability Rating :

UL94 V-0

Reference Standard :

UL

Mounting Type :

Surface Mount, Right Angle

Termination :

Solder

Option :

GENERAL PURPOSE

RoHS Status :

ROHS3 Compliant

Housing Material :

Polyamide

Insulation Color :

White

Contact Finish :

Gold

Number of Positions :

4

Contact Material :

Bronze

DIN Conformance :

No

Mating Cycles :

1500

Operating Temperature (Max) :

85°C

Additional Feature :

RoHS Compliant

Voltage - Rated :

250VAC

Packaging :

Bulk

Shell/Shielding Material :

Brass

IEC Conformance :

No

Depth :

16mm

Orientation :

RIGHT ANGLE
