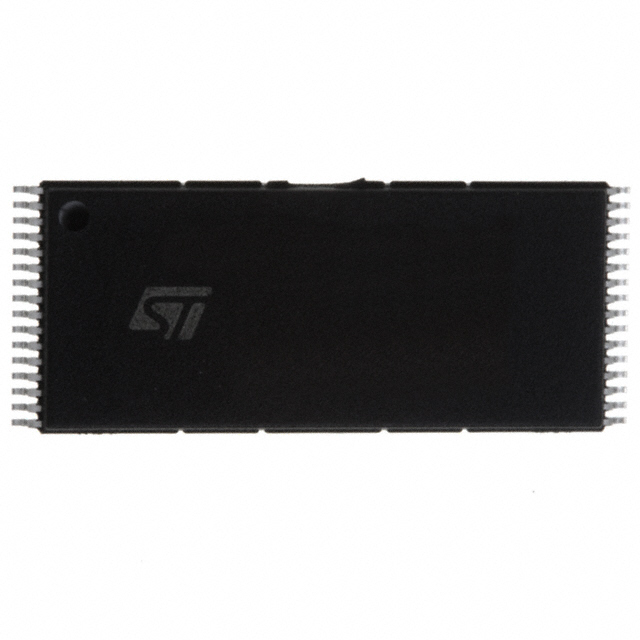

M29W040B70N1

Manufacturer :

STMicroelectronics

Product Category :

Memory

Standby Current-Max :

0.0001A

Packaging :

Tray

Organization :

512KX8

JESD-609 Code :

e0

Toggle Bit :

yes

Surface Mount :

yes

Number of Functions :

1

Memory Interface :

Parallel

Sector Size :

64K

Base Part Number :

M29W040

Endurance :

100000 Write/Erase Cycles

Terminal Position :

Dual

Moisture Sensitivity Level (MSL) :

3 (168 Hours)

Operating Temperature :

0°C~70°C TA

Data Polling :

yes

Memory Size :

4Mb 512K x 8

Memory Density :

4194304 bit

Voltage - Supply :

2.7V~3.6V

Terminal Finish :

TIN LEAD

Pin Count :

32

Qualification Status :

Not Qualified

Power Supplies :

3/3.3V

Programming Voltage :

2.7V

Number of Terminations :

32

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Height Seated (Max) :

1.2mm

Supply Voltage :

3.3V

Mounting Type :

Surface Mount

Number of Pins :

32

Supply Current-Max :

0.02mA

Supply Voltage-Max (Vsup) :

3.6V

RoHS Status :

ROHS3 Compliant

Supply Voltage-Min (Vsup) :

2.7V

Package / Case :

32-TFSOP (0.724, 18.40mm Width)

ECCN Code :

EAR99

Number of Sectors/Size :

8

Memory Format :

Flash

Memory Width :

8

Length :

18.4mm

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED

Memory Type :

Non-Volatile

Terminal Pitch :

0.5mm

Operating Mode :

ASYNCHRONOUS

Access Time (Max) :

70 ns

Write Cycle Time - Word, Page :

70ns

Data Bus Width :

8B

Command User Interface :

yes
