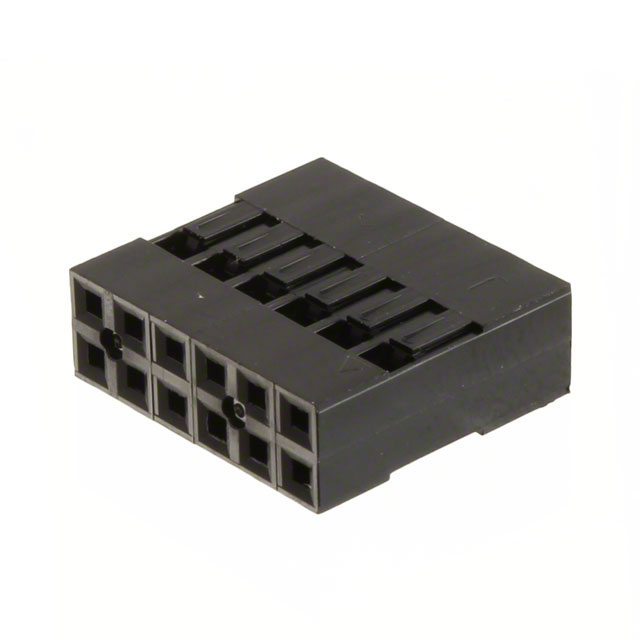

M20-1070600

Manufacturer :

Harwin

Product Category :

Rectangular Connector Housings

Insulation Resistance :

1MOhm

Contact Type :

Female Socket

Depth :

14mm

RoHS Status :

ROHS3 Compliant

Max Voltage Rating (AC) :

250V

ECCN Code :

EAR99

Color :

Black

Body/Shell Style :

PLUG

REACH SVHC :

No SVHC

Wire Gauge (Min) :

22 AWG

Published :

2001

Contact Material :

Bronze

Width :

5.08mm

Max Operating Temperature :

105°C

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Lead Pitch :

2.54mm

Reliability :

COMMERCIAL

MIL Conformance :

No

Connector Type :

Receptacle

DIN Conformance :

No

Min Operating Temperature :

-40°C

Dielectric Withstanding Voltage :

1500VAC V

Packaging :

Bulk

Current Rating :

3A

Factory Lead Time :

12 Weeks

Housing Material :

Polyphenylene

UL Flammability Code :

94V-0

Reference Standard :

UL

Number of Positions :

12

Pitch :

0.100 2.54mm

Withdrawl Force-Min :

.1946 N

Orientation :

Straight

Row Spacing :

0.100 (2.54mm)

Series :

M20

Length :

15.24mm

Contact Termination :

Crimp

Contact Resistance :

15mOhm

Mount :

Cable, Free Hanging

Radiation Hardening :

No

Filter Feature :

No

Total Number of Contacts :

12

IEC Conformance :

No

Note :

Contacts Not Included

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Mounting Type :

Free Hanging (In-Line)

Pbfree Code :

yes

Mixed Contacts :

No

Wire Gauge (Max) :

30 AWG

Contact Gender :

FEMALE

Number of Rows :

2

HTS Code :

8536.69.40.40

Max Current Rating :

3A

Voltage - Rated AC :

250V

Option :

GENERAL PURPOSE

Rated Current (Signal) :

3A
