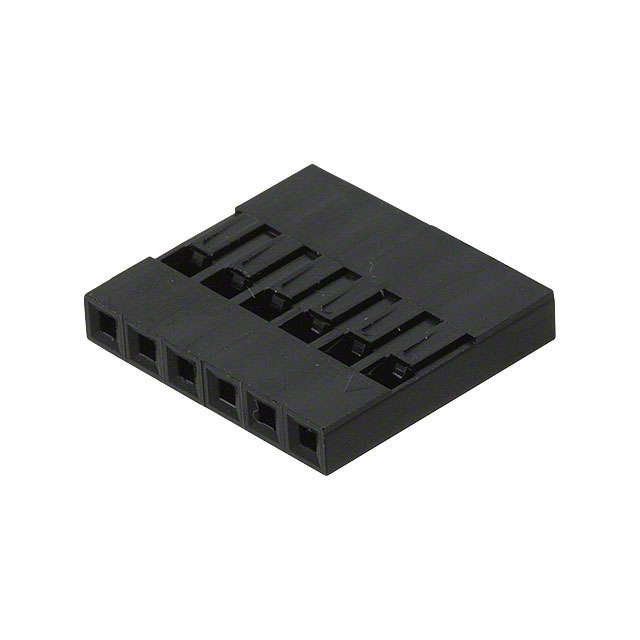

M20-1060600

Manufacturer :

Harwin

Product Category :

Rectangular Connector Housings

Orientation :

Straight

Mixed Contacts :

No

MIL Conformance :

No

Series :

M20

Package / Case :

SIL

Mounting Type :

Free Hanging (In-Line)

Number of Rows :

1

Width :

2.54mm

Filter Feature :

No

Voltage - Rated AC :

250V

Pitch :

0.100 2.54mm

Number of Positions :

6

Max Current Rating :

3A

Polarization Key :

POLARIZED HOUSING

Reference Standard :

UL

Radiation Hardening :

No

DIN Conformance :

No

Weight :

299.994654mg

Published :

2001

Contact Resistance :

15mOhm

Min Operating Temperature :

-40°C

UL Flammability Code :

94V-0

Max Voltage Rating (AC) :

250V

RoHS Status :

ROHS3 Compliant

Pbfree Code :

yes

ECCN Code :

EAR99

Wire Gauge (Min) :

22 AWG

Reliability :

COMMERCIAL

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Contact Termination :

Crimp

Rated Current (Signal) :

3A

Max Operating Temperature :

105°C

Body/Shell Style :

PLUG

Mount :

Free Hanging

Packaging :

Bulk

IEC Conformance :

No

Depth :

14mm

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Length :

15.24mm

Color :

Black

Option :

GENERAL PURPOSE

Connector Type :

Receptacle

Housing Material :

Polyphenylene

Total Number of Contacts :

6

Contact Type :

Female Socket

Factory Lead Time :

12 Weeks

Current Rating :

3A

Insertion Force-Max :

4.8928 N

Wire Gauge (Max) :

30 AWG

Note :

Contacts Not Included

Insulation Resistance :

1MOhm

Contact Gender :

FEMALE
