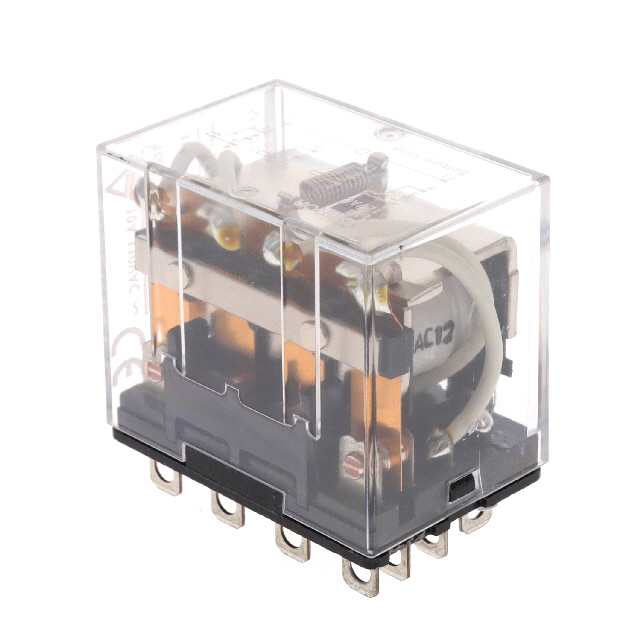

LY4-AC12

Manufacturer :

Omron Automation

Product Category :

Power Relays, Over 2 Amps

Number of Pins :

14

Coil Type :

Non Latching

Pbfree Code :

yes

Voltage - Rated AC :

250V

Relay Type :

GENERAL PURPOSE

Release Time :

25 ms

Width :

27.94mm

Max Current Rating :

10A

Contact Material :

Silver Alloy

Mounting Type :

Socketable

Throw Configuration :

4PDT

Switching Voltage :

250VAC 125VDC -Max

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Coil Current :

170mA

Published :

2003

Approval Agency :

CSA, UL, VDE

Operating Temperature :

-25°C~40°C

Factory Lead Time :

5 Weeks

Coil/Input Supply Type :

AC

Contact Form :

4PDT (4 Form C)

Termination :

PLUG

Length :

41.4mm

Physical Dimension :

41.4mm x 27.94mm x 36.06mm

Coil Power :

2.5W

Max Voltage Rating (AC) :

250V

RoHS Status :

RoHS Compliant

Series :

LY

Current Rating :

10A

Contact/Output Supply Type :

AC/DC

Height :

36.06mm

Reference Standard :

CE; CSA; TUV; UL

Lead Free :

Lead Free

Coil Voltage (AC) :

12V

Must Operate Voltage :

9.6VAC

Max Voltage Rating (DC) :

125V

Coil Resistance :

20Ohm

Relay Action :

Momentary

Power Consumption :

2.5W

Operate Time :

25ms

Radiation Hardening :

No

Termination Style :

Plug In

Mount :

Plug-In, Socket, Socketable

Contact (AC) Max Rating R Load :

10A@110VAC

Coil Voltage :

12VAC

Must Release Voltage :

3.6VAC

Depth :

36mm

Packaging :

Bulk

Additional Feature :

COIL OPERATE VOLTAGE(AC): 9.6 V, COIL RELEASE VOLTAGE(AC): 3.6 V

Contact (DC) Max Rating R Load :

10A@24VDC
