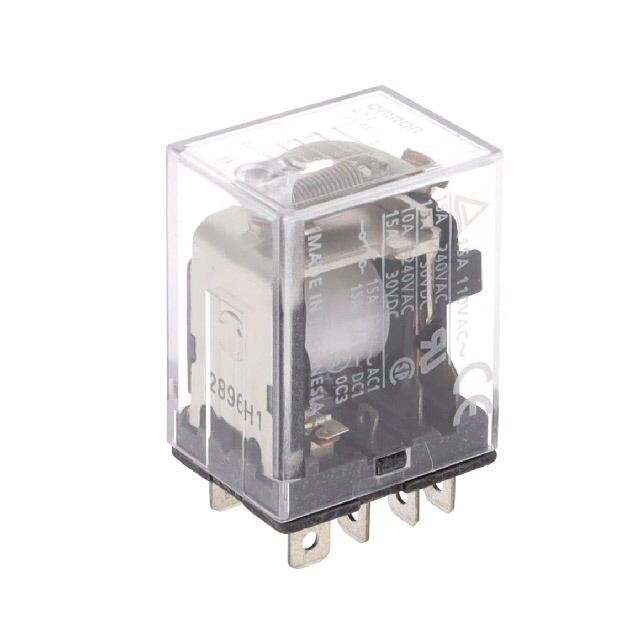

LY1-AC12

Manufacturer :

Omron Automation

Product Category :

Power Relays, Over 2 Amps

Mounting Type :

Socketable

Coil Current :

91mA

Coil/Input Supply Type :

AC

Packaging :

Bulk

Must Operate Voltage :

9.6VAC

Termination :

PLUG

Physical Dimension :

27.94mm x 21.59mm x 36.06mm

Mount :

Socket, Socketable

Coil Resistance :

46Ohm

Additional Feature :

COIL OPERATE VOLTAGE(AC): 9.6 V, COIL RELEASE VOLTAGE(AC): 3.6 V

Coil Type :

Non Latching

Coil Voltage :

12VAC

Length :

28mm

Termination Style :

Plug In

Relay Action :

Momentary

Contact Form :

SPDT (1 Form C)

Relay Type :

GENERAL PURPOSE

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Contact (DC) Max Rating R Load :

15A@24VDC

Contact (AC) Max Rating R Load :

15A@110VAC

Max Voltage Rating (AC) :

250V

Width :

21.5mm

Radiation Hardening :

No

Series :

LY

Max Current Rating :

15A

Published :

2003

Operating Temperature :

-25°C~55°C

Body Breadth :

21.59 mm

Power Consumption :

1.2W

Reference Standard :

CE; CSA; TUV; UL

RoHS Status :

RoHS Compliant

Operate Time :

25ms

Coil Power :

1.2W

Contact/Output Supply Type :

AC/DC

Height :

36mm

Release Time :

25 ms

Contact Material :

Silver Alloy

Max Voltage Rating (DC) :

125V

Must Release Voltage :

3.6VAC

Throw Configuration :

SPDT

Coil Voltage (AC) :

12V

Switching Voltage :

250VAC 125VDC -Max

Pbfree Code :

yes
