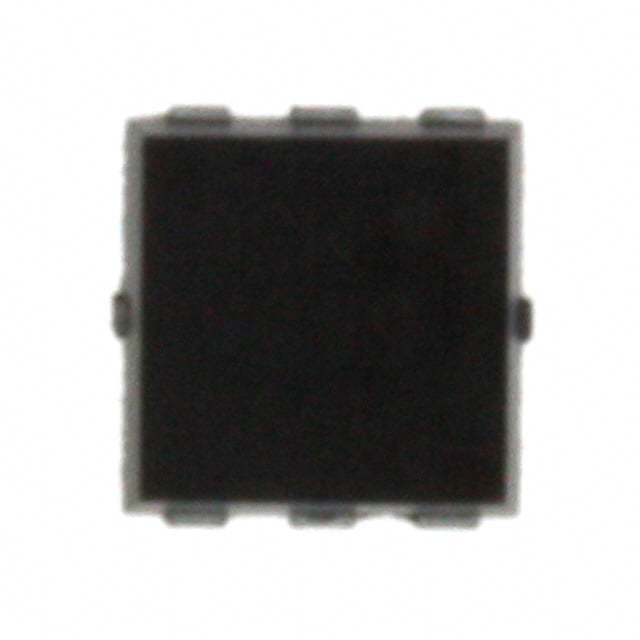

LX1990ILM-TR

Manufacturer :

Microsemi

Product Category :

LED Drivers

Number of Outputs :

2

Number of Pins :

6

Max Supply Voltage :

5.5V

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Number of Segments :

2

Terminal Finish :

MATTE TIN

Voltage - Output :

0.1V~10V

Packaging :

Tape and Reel (TR)

Terminal Pitch :

0.95mm

Pin Count :

6

Supply Voltage :

5V

Published :

2002

Operating Temperature :

-40°C~85°C TA

Pbfree Code :

yes

RoHS Status :

RoHS Compliant

Terminal Position :

Dual

Min Supply Voltage :

2.7V

Internal Switch(s) :

yes

Time@Peak Reflow Temperature-Max (s) :

40

Output Current :

30mA

Applications :

Backlight

Multiplexed Display Capability :

No

Type :

Linear

Base Part Number :

LX1990

Voltage - Supply (Min) :

2.7V

JESD-609 Code :

e3

Length :

3mm

Number of Functions :

1

Radiation Hardening :

No

Mount :

Surface Mount

Number of Terminations :

6

Mounting Type :

Surface Mount

Package / Case :

6-VDFN Exposed Pad

Dimming :

PWM

Lead Free :

Lead Free

Height Seated (Max) :

1mm

Width :

3mm

Peak Reflow Temperature (Cel) :

260

ECCN Code :

EAR99
