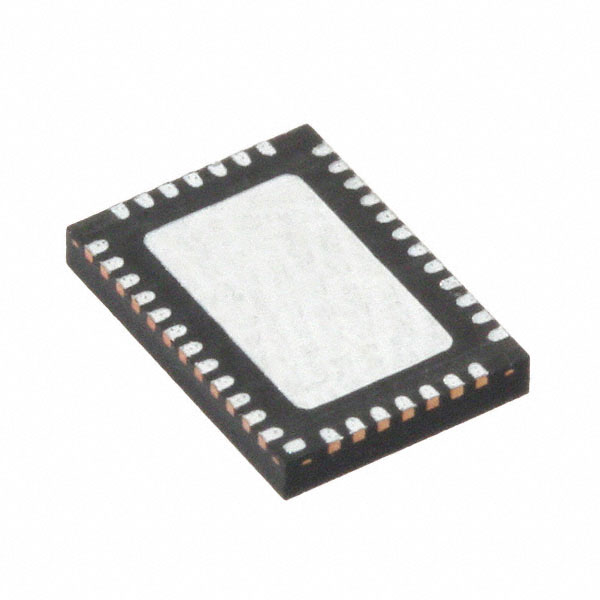

LX1677CLQ

Manufacturer :

Microsemi

Product Category :

Special Purpose Regulators

Width :

5mm

Pin Count :

38

Package / Case :

38-VFQFN Exposed Pad

ECCN Code :

EAR99

JESD-30 Code :

R-PQCC-N38

Analog IC - Other Type :

SWITCHING CONTROLLER

Base Part Number :

LX1677

Number of Functions :

1

Time@Peak Reflow Temperature-Max (s) :

40

Frequency :

500kHz

Applications :

Controller, Intel VRM

JESD-609 Code :

e3

Operating Temperature :

0°C~70°C

Peak Reflow Temperature (Cel) :

260

RoHS Status :

RoHS Compliant

Moisture Sensitivity Level (MSL) :

2 (1 Year)

Control Technique :

PULSE WIDTH MODULATION

Packaging :

Bulk

Terminal Finish :

Matte Tin (Sn)

Mount :

Surface Mount

Terminal Position :

QUAD

Terminal Pitch :

0.5mm

Mounting Type :

Surface Mount

Number of Terminations :

38

Input Voltage-Nom :

5V

Lead Free :

Lead Free

Published :

2005

Terminal Form :

NO LEAD

Number of Outputs :

1

Length :

7mm

Control Mode :

VOLTAGE-MODE

Pbfree Code :

yes

Height Seated (Max) :

0.8mm

Qualification Status :

Not Qualified

Voltage - Output :

0.8V~1.55V

Switcher Configuration :

PHASE-SHIFT

Voltage - Input :

4.5V~5.5V
