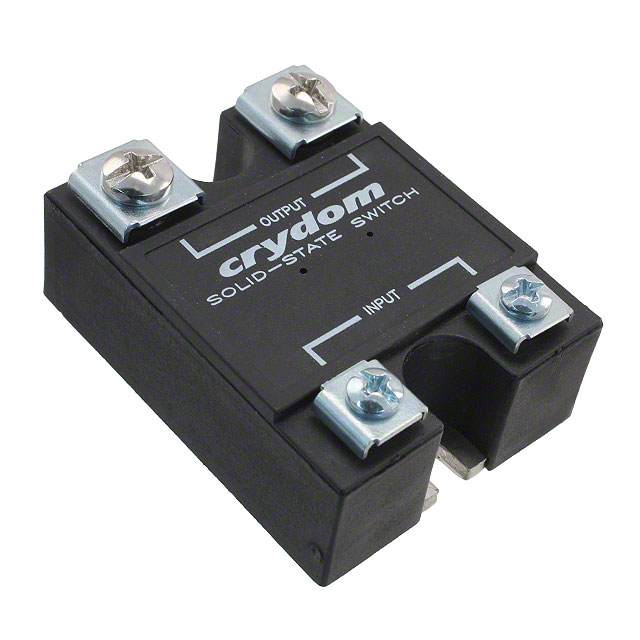

LVD75B100H
Or copy the link below:
- Mfr.Part #
- LVD75B100H
- Manufacturer
- Sensata Technologies – Crydom
- Package / Case
- Hockey Puck
- Datasheet
- Download
- Description
- SSR RELAY SPST-NO 100A 3-75V
- Stock
- 3
- In Stock ：
- 3
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Sensata Technologies – Crydom
- Product Category :
- Solid State Relays
- Max Output Current :
- 100A
- Voltage - Load :
- 3V~75V
- RoHS Status :
- RoHS Compliant
- REACH SVHC :
- No SVHC
- Load Current :
- 100A
- Mount :
- Chassis Mount, Panel, Screw
- Package / Case :
- Hockey Puck
- Circuit :
- SPST-NO (1 Form A)
- Resistance :
- 5mOhm
- Throw Configuration :
- SPST
- Relay Type :
- Relay
- Weight :
- 99.999994g
- Series :
- LVD
- Max Surge Current :
- 250A
- On-State Resistance (Max) :
- 5mOhms
- Operating Supply Voltage :
- 75V
- Published :
- 2010
- Max Output Voltage :
- 75V
- Min Operating Temperature :
- -30°C
- Max Operating Temperature :
- 80°C
- Current Rating :
- 100A
- Min Supply Voltage :
- 3V
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Packaging :
- Bulk
- Number of Pins :
- 4
- Voltage - Input :
- 11.5V~12VDC
- Output Type :
- DC
- Max Supply Voltage :
- 75V
- Termination Style :
- Screw Terminal
- Mounting Type :
- Chassis Mount
- Max Input Current :
- 12mA
- Isolation Voltage :
- 2.5kV
- Factory Lead Time :
- 6 Weeks
- Termination :
- Screw
- Datasheets
- LVD75B100H
