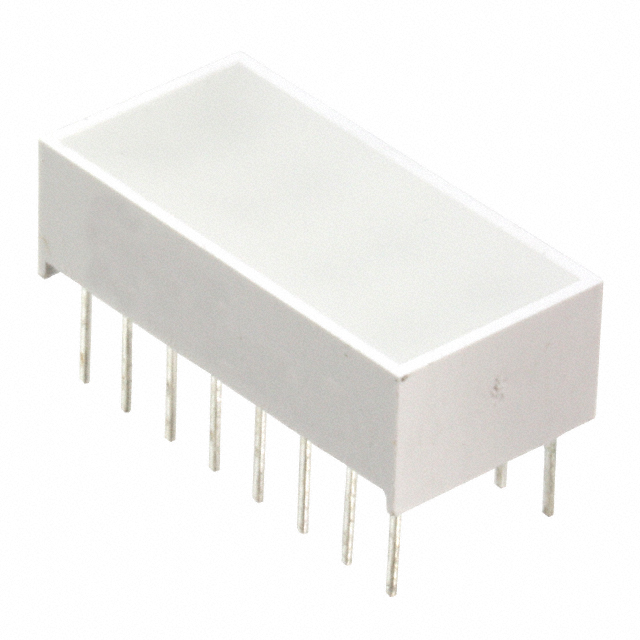

LTL-2785Y

Manufacturer :

LITEON

Product Category :

Number of LEDs :

8

Configuration :

Bar - Single, DIP

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Shape :

RECTANGULAR

Current :

80mA

Number of Elements :

8

Packaging :

Tube

Power Dissipation :

60mW

Max Operating Temperature :

85°C

RoHS Status :

ROHS3 Compliant

Additional Feature :

High Reliability

Max Power Dissipation :

60mW

Width :

10mm

Pbfree Code :

yes

Depth :

10mm

Package / Case :

DIP

Forward Current :

20mA

Terminal Pitch :

2.54mm

Terminal Finish :

Pure Tin (Sn)

Mount :

Through Hole

Lens Style :

Round with Domed Top

Factory Lead Time :

12 Weeks

Forward Voltage :

2.6V

Luminous Intensity :

16 mcd

Length :

20.16mm

Lead Free :

Lead Free

Color :

Yellow

Radiation Hardening :

No

Number of Functions :

1

Min Operating Temperature :

-35°C

Packing Method :

Bulk

Overall Height :

6.15mm

Dominant Wavelength :

588 nm

Reverse Voltage :

5V

Optoelectronic Device Type :

SINGLE COLOR LED

Number of Terminations :

16

Published :

2000

Test Current :

10mA

Power Rating :

60mW

Number of Pins :

16

Mounting Type :

Through Hole

Operating Supply Voltage :

2.1V

Lens Size :

4.20mm Dia

Lens Type :

Diffused

Wavelength - Peak :

585nm
