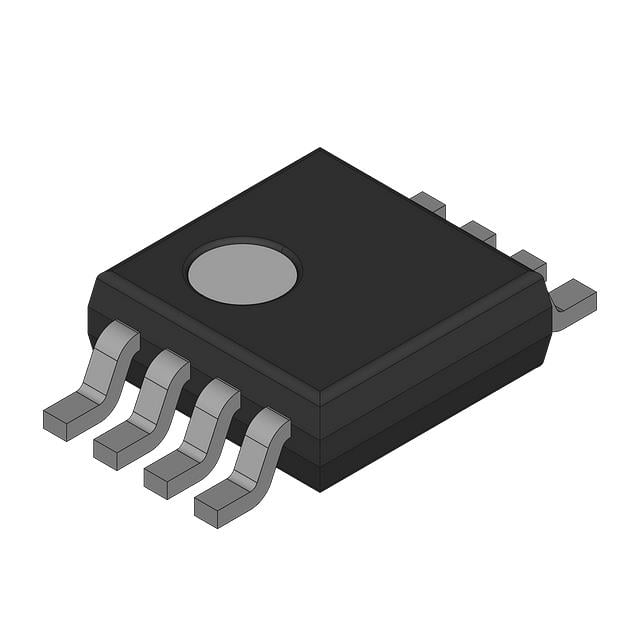

LTC1440IMS8

Manufacturer :

Linear Technology

Product Category :

Comparators

Published :

2006

Qualification Status :

Not Qualified

Peak Reflow Temperature (Cel) :

260

Terminal Form :

Gull wing

Packaging :

Tube

Response Time :

14000 ns

Mounting Type :

Surface Mount

Output Type :

CMOS, TTL

Type :

with Voltage Reference

RoHS Status :

ROHS3 Compliant

Factory Lead Time :

8 Weeks

JESD-30 Code :

S-PDSO-G8

Pin Count :

8

Hysteresis :

50mV

Current - Quiescent (Max) :

4.4μA

Current - Output (Typ) :

40mA

Terminal Position :

Dual

Time@Peak Reflow Temperature-Max (s) :

30

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Propagation Delay (Max) :

15μs

Supply Current-Max :

0.0044mA

Terminal Finish :

Matte Tin (Sn)

Terminal Pitch :

0.65mm

Base Part Number :

LTC1440

Package / Case :

8-TSSOP, 8-MSOP (0.118, 3.00mm Width)

Operating Temperature :

-40°C~85°C

CMRR, PSRR (Typ) :

80dB CMRR, 80dB PSRR

Supply Voltage :

3V

JESD-609 Code :

e3

Number of Terminations :

8

Neg Supply Voltage-Max (Vsup) :

-0.3V

Voltage - Input Offset (Max) :

10mV @ 5V

Length :

3mm

ECCN Code :

EAR99

Number of Functions :

1

Surface Mount :

yes

Voltage - Supply, Single/Dual (±) :

2V~11V ±1V~5.5V

Number of Elements :

1

Width :

3mm
