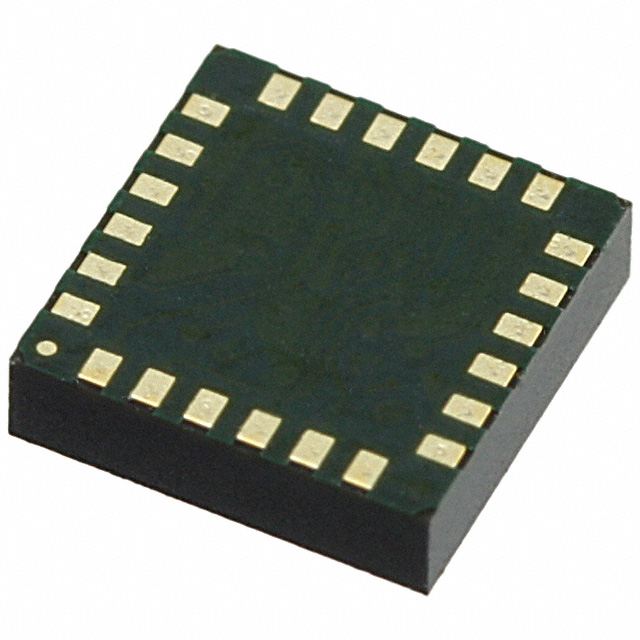

LSM9DS0TR

Manufacturer :

STMicroelectronics

Product Category :

Motion Sensors - IMUs (Inertial Measurement Units)

Operating Supply Voltage :

3.6V

Terminal Pitch :

0.5mm

Surface Mount :

yes

Terminal Form :

BUTT

Series :

iNEMO

Height Seated (Max) :

1.07mm

Output Type :

I2C, SPI

Supply Voltage :

3V

Bandwidth :

400 kHz

Min Supply Voltage (DC) :

2.4V

Number of Functions :

1

Max Supply Voltage (DC) :

3.6V

JESD-609 Code :

e4

Operating Supply Current :

6.1mA

Interface :

I2C, SPI

Packaging :

Tape and Reel (TR)

Package / Case :

24-TFLGA Module

ECCN Code :

EAR99

Number of Pins :

24

Resolution :

2 B

Radiation Hardening :

No

RoHS Status :

ROHS3 Compliant

Terminal Position :

BOTTOM

Operating Temperature :

-40°C~85°C TA

HTS Code :

8542.39.00.01

Contact Plating :

Gold

Length :

4mm

Mounting Type :

Surface Mount

Time@Peak Reflow Temperature-Max (s) :

30

Number of Terminations :

24

Lead Free :

Lead Free

Moisture Sensitivity Level (MSL) :

3 (168 Hours)

Base Part Number :

LSM9D

Analog IC - Other Type :

ANALOG CIRCUIT

Peak Reflow Temperature (Cel) :

260

Sensor Type :

Accelerometer, Gyroscope, Magnetometer, Temperature, 9 Axis

Pin Count :

24
