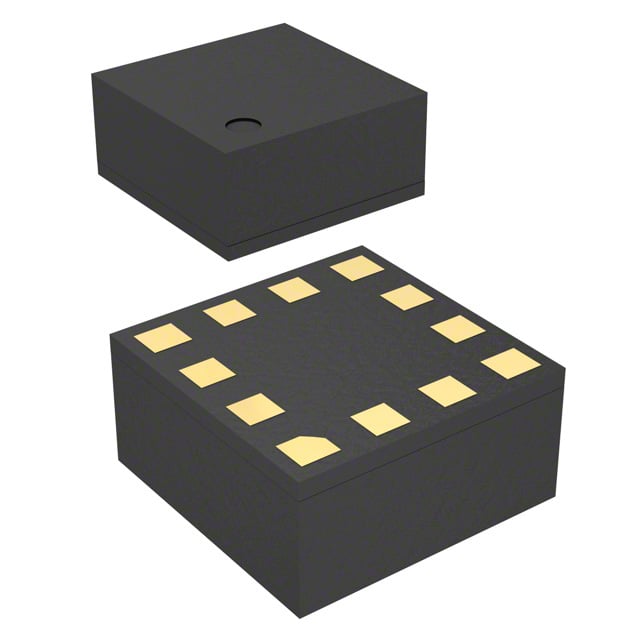

LSM303CTR

Manufacturer :

STMicroelectronics

Product Category :

Motion Sensors - IMUs (Inertial Measurement Units)

Mount :

Surface Mount

Width :

2mm

Mounting Type :

Surface Mount

Operating Temperature :

-40°C~85°C TA

Min Supply Voltage (DC) :

1.9V

Supply Voltage :

2.5V

Terminal Finish :

Nickel/Gold (Ni/Au) - electrolytic

Max Supply Voltage (DC) :

3.6V

Lead Free :

Lead Free

Number of Terminations :

12

Resolution :

2 B

HTS Code :

8542.39.00.01

Sensor Type :

Accelerometer, Magnetometer, Temperature, 6 Axis

Moisture Sensitivity Level (MSL) :

3 (168 Hours)

Interface :

I2C, SPI

Peak Reflow Temperature (Cel) :

260

Radiation Hardening :

No

Number of Pins :

12

Number of Functions :

1

Packaging :

Cut Tape (CT)

Package / Case :

12-VFLGA Module

Terminal Form :

BUTT

JESD-609 Code :

e4

ECCN Code :

EAR99

Output Type :

I2C, SPI

Length :

2mm

Pin Count :

12

Height Seated (Max) :

1mm

Terminal Pitch :

0.5mm

Operating Supply Voltage :

3.6V

RoHS Status :

ROHS3 Compliant

Analog IC - Other Type :

ANALOG CIRCUIT

Base Part Number :

LSM303

Terminal Position :

BOTTOM
