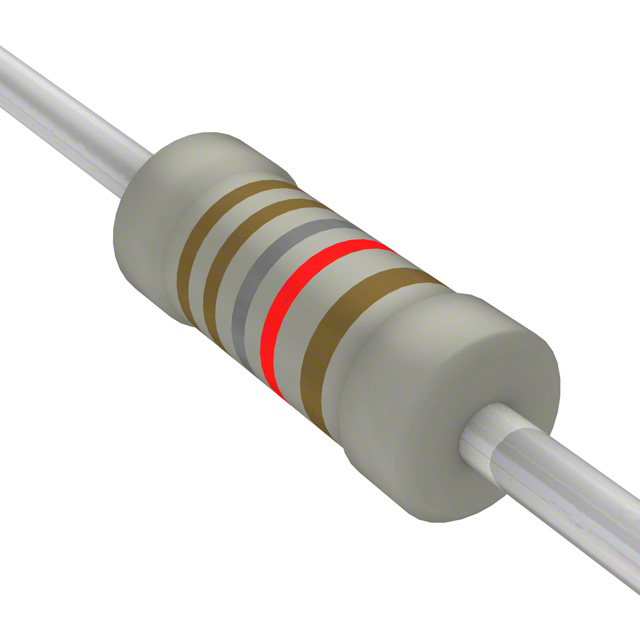

LR1F11K8

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Through Hole Resistors

Mounting Style :

PCB Mount

Product Type :

Metal Film Resistors

Lead Diameter :

0.55 mm

Packaging :

Tape and Box (TB)

Number of Terminations :

2

Product Status :

Active

Length :

6.2 mm

Minimum Operating Temperature :

- 55 C

Tolerance :

±1%

Diameter :

2.3 mm

Supplier Device Package :

Axial

Capacitance :

68 pF

Resistance :

11.8 kOhms

Series :

LR, Neohm

Rated Power Dissipation (P) :

0.6 W

Failure Rate :

--

Subcategory :

Resistors

Maximum Operating Temperature :

+ 155 C

Size / Dimension :

0.091 Dia x 0.244 L (2.30mm x 6.20mm)

Reach Compliance Code :

Compliant

Package / Case :

Axial

Product Category :

Metal Film Resistors - Through Hole

Pbfree Code :

yes

Product Length :

2.01 mm

Manufacturer :

TE Connectivity

Package :

Tape and Box (TB)

Technology :

Metal Film

Package Shape :

TUBULAR PACKAGE

Surface Mount :

No

Terminal Finish :

Tin (Sn)

Additional Feature :

PRECISION

Operating Temperature :

-55°C ~ 155°C

Package Length :

6.2 mm

Power Rating :

600 mW

Composition :

Metal Film

Resistor Type :

FIXED RESISTOR

Termination Style :

Axial

Number of Terminals :

2

Construction :

Tubular

Temperature Coefficient :

±50ppm/°C

Power (Watts) :

0.6W

Height - Seated (Max) :

--

Product Width :

2.01 x 1.25 x 0.94 mm

JESD-609 Code :

e3

Working Voltage :

350 V

Mounting Feature :

THROUGH HOLE MOUNT

Brand :

TE Connectivity / Holsworthy

Base Product Number :

LR1F

ECCN Code :

EAR99

Factory Lead Time :

15 Weeks, 6 Days

Features :

--

Packing Method :

Ammo Pack

Rated Temperature :

70 °C

Capacitance Tolerance :

5%

Terminal Shape :

Wire
