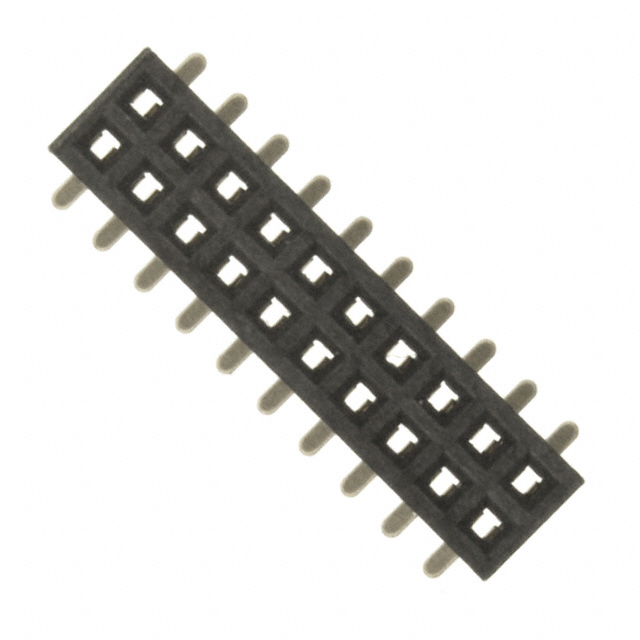

LPPB102NFSS-RC
Or copy the link below:
- Mfr.Part #
- LPPB102NFSS-RC
- Manufacturer
- Sullins Connector Solutions
- Package / Case
- SMD/SMT
- Datasheet
- Download
- Description
- CONN HDR 20POS 0.05 GOLD SMD
- Stock
- 940
- In Stock ：
- 940
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Sullins Connector Solutions
- Product Category :
- Headers, Receptacles, Female Sockets
- Number of Rows :
- 2
- Fastening Type :
- Push-Pull
- Termination :
- Solder
- Number of Positions :
- 20
- Body Length or Diameter :
- 0.515 inch
- Contact Material :
- Phosphor Bronze
- Insulation Height :
- 0.183 4.65mm
- Number Of PCB Rows :
- 2
- Lead Free :
- Lead Free
- Contact Shape :
- Square
- Insulation Material :
- Liquid Crystal Polymer (LCP)
- Published :
- 2008
- Current Rating (Amps) :
- 1A
- Total Number of Contacts :
- 20
- Material Flammability Rating :
- UL94 V-0
- Packaging :
- Tube
- Body Depth :
- 0.177 inch
- Contact Type :
- Female Socket
- Mating Contact Pitch :
- 0.05 inch
- Style :
- Board to Board
- Number of Positions Loaded :
- All
- Connector Type :
- Header, Top or Bottom Entry
- Row Spacing - Mating :
- 0.050 (1.27mm)
- Polarization Key :
- POLARIZED HOUSING
- Contact Finish Thickness - Mating :
- Flash
- Number of Conductors :
- ONE
- PCB Contact Row Spacing :
- 3.9116 mm
- PCB Contact Pattern :
- RECTANGULAR
- Contact Finish - Mating :
- Gold
- Insulation Color :
- Black
- Package / Case :
- SMD/SMT
- Operating Temperature :
- -40°C~125°C
- Pitch - Mating :
- 0.050 1.27mm
- Factory Lead Time :
- 5 Weeks
- Reliability :
- COMMERCIAL
- RoHS Status :
- ROHS3 Compliant
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Reference Standard :
- UL
- Mount :
- Surface Mount
- Mounting Type :
- Surface Mount
- Datasheets
- LPPB102NFSS-RC
LPPB102NFSS-RC Documents
2 Rows Header, Top or Bottom Entry Solder Phosphor Bronze Surface Mount Tube Gold Liquid Crystal Polymer (LCP) 20 Positions Female Socket
LPPB102NFSS-RC Overview
A Header, Top or Bottom Entry package is included with it.Its mounting type is Surface Mount.Packaging is performed using a Tube case.A device is enclosed in the packaging with the SMD/SMT.Surface Mount mounts the part.There is no operating temperature for the device.
LPPB102NFSS-RC Features
LPPB102NFSS-RC Applications
There are a lot of Sullins Connector Solutions
LPPB102NFSS-RC Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
