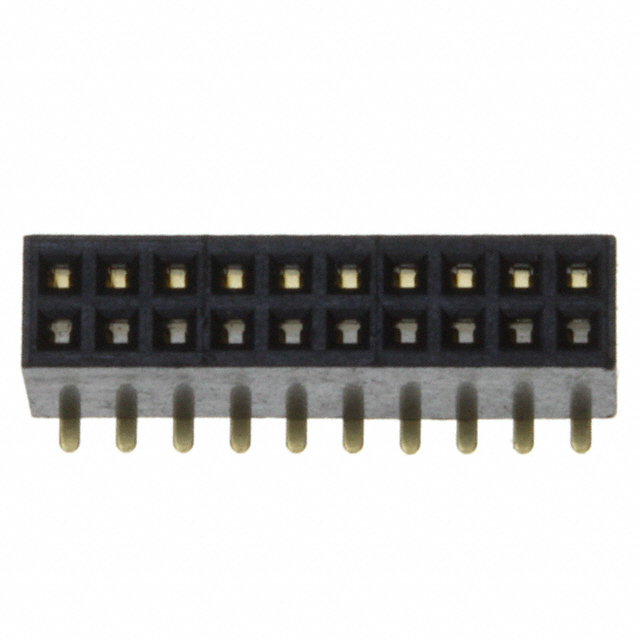

LPPB102NFSP-RC
Or copy the link below:
- Mfr.Part #
- LPPB102NFSP-RC
- Manufacturer
- Sullins Connector Solutions
- Package / Case
- Datasheet
- Download
- Description
- CONN HDR 20POS 0.05 GOLD SMD
- Stock
- 690
- In Stock ：
- 690
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Sullins Connector Solutions
- Product Category :
- Headers, Receptacles, Female Sockets
- ECCN Code :
- EAR99
- Termination :
- Solder
- Insulation Height :
- 0.183 4.65mm
- RoHS Status :
- ROHS3 Compliant
- Contact Shape :
- Square
- IEC Conformance :
- No
- Contact Finish - Mating :
- Gold
- Pitch - Mating :
- 0.050 1.27mm
- Feature :
- Board Guide
- Number of Positions :
- 20
- UL Flammability Code :
- 94V-0
- Number of Positions Loaded :
- All
- Contact Material :
- Phosphor Bronze
- Contact Finish Thickness - Mating :
- Flash
- Material Flammability Rating :
- UL94 V-0
- Mount :
- Surface Mount
- Published :
- 2007
- Packaging :
- Tube
- Number of Rows :
- 2
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Option :
- GENERAL PURPOSE
- Lead Free :
- Lead Free
- Operating Temperature :
- -40°C~125°C
- MIL Conformance :
- No
- Fastening Type :
- Push-Pull
- Contact Type :
- Female Socket
- Current Rating (Amps) :
- 1A
- Factory Lead Time :
- 5 Weeks
- Connector Type :
- Header, Top or Bottom Entry
- Mixed Contacts :
- No
- Style :
- Board to Board
- HTS Code :
- 8536.69.40.40
- Row Spacing - Mating :
- 0.050 (1.27mm)
- DIN Conformance :
- No
- Insulation Material :
- Liquid Crystal Polymer (LCP)
- Total Number of Contacts :
- 20
- Filter Feature :
- No
- Mounting Type :
- Surface Mount
- Insulation Color :
- Black
- Datasheets
- LPPB102NFSP-RC
2 Rows Header, Top or Bottom Entry Solder Phosphor Bronze Surface Mount Tube Gold Liquid Crystal Polymer (LCP) 20 Positions Female Socket
LPPB102NFSP-RC Overview
Packaging for this item is Header, Top or Bottom Entry.There is a mounting type of Surface Mount for this device.It is necessary to use a Tube case for packaging the product.In many ways, its Board Guide feature makes it more powerful.Surface Mount is used to mount the part.In this case, the device operates at -40°C~125°C Operating Temperature.
LPPB102NFSP-RC Features
LPPB102NFSP-RC Applications
There are a lot of Sullins Connector Solutions
LPPB102NFSP-RC Rectangular Connectors applications.
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
