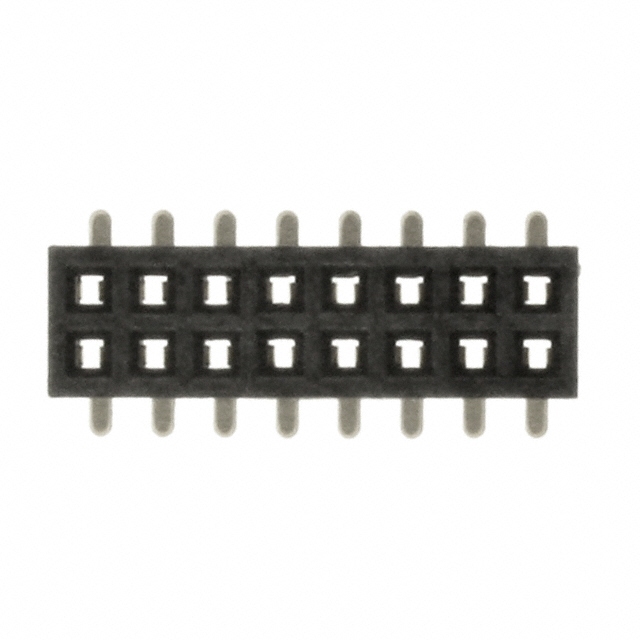

LPPB082NFSS-RC
Or copy the link below:
- Mfr.Part #
- LPPB082NFSS-RC
- Manufacturer
- Sullins Connector Solutions
- Package / Case
- SMD/SMT
- Datasheet
- Download
- Description
- CONN HDR 16POS 0.05 GOLD SMD
- Stock
- 41,930
- In Stock ：
- 41,930
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Sullins Connector Solutions
- Product Category :
- Headers, Receptacles, Female Sockets
- Mount :
- Surface Mount
- Style :
- Board to Board
- Number Of PCB Rows :
- 2
- Insulation Height :
- 0.183 4.65mm
- Insulation Color :
- Black
- PCB Contact Pattern :
- RECTANGULAR
- Termination :
- Solder
- Factory Lead Time :
- 4 Weeks
- Body Length or Diameter :
- 0.415 inch
- Operating Temperature :
- -40°C~125°C
- RoHS Status :
- ROHS3 Compliant
- Mounting Type :
- Surface Mount
- Connector Type :
- Header, Top or Bottom Entry
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Finish - Mating :
- Gold
- Packaging :
- Tube
- Material Flammability Rating :
- UL94 V-0
- Contact Type :
- Female Socket
- Reliability :
- COMMERCIAL
- Row Spacing - Mating :
- 0.050 (1.27mm)
- Number of Conductors :
- ONE
- Number of Positions Loaded :
- All
- Polarization Key :
- POLARIZED HOUSING
- Pitch - Mating :
- 0.050 1.27mm
- Insulation Material :
- Liquid Crystal Polymer (LCP)
- Number of Rows :
- 2
- Package / Case :
- SMD/SMT
- Contact Material :
- Phosphor Bronze
- Mating Contact Pitch :
- 0.05 inch
- Contact Shape :
- Square
- Current Rating (Amps) :
- 1A
- Contact Finish Thickness - Mating :
- Flash
- Number of Positions :
- 16
- Body Depth :
- 0.177 inch
- Fastening Type :
- Push-Pull
- Total Number of Contacts :
- 16
- Published :
- 2008
- Reference Standard :
- UL
- Datasheets
- LPPB082NFSS-RC
LPPB082NFSS-RC Documents
2 Rows Header, Top or Bottom Entry Solder Phosphor Bronze Surface Mount Tube Gold Liquid Crystal Polymer (LCP) 16 Positions Female Socket
LPPB082NFSS-RC Overview
Packaging is Header, Top or Bottom Entry.Surface Mount is the mounting type.Packaging for the product is carried out via a Tube case.An enclosed device is enclosed in the packaging with the SMD/SMT.In this case, Surface Mount mounts the part.The device is operating at -40°C~125°C Operating Temperature.
LPPB082NFSS-RC Features
LPPB082NFSS-RC Applications
There are a lot of Sullins Connector Solutions
LPPB082NFSS-RC Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
